Fig. 36 Calib. Code 2-05W-R0 High Alt.
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

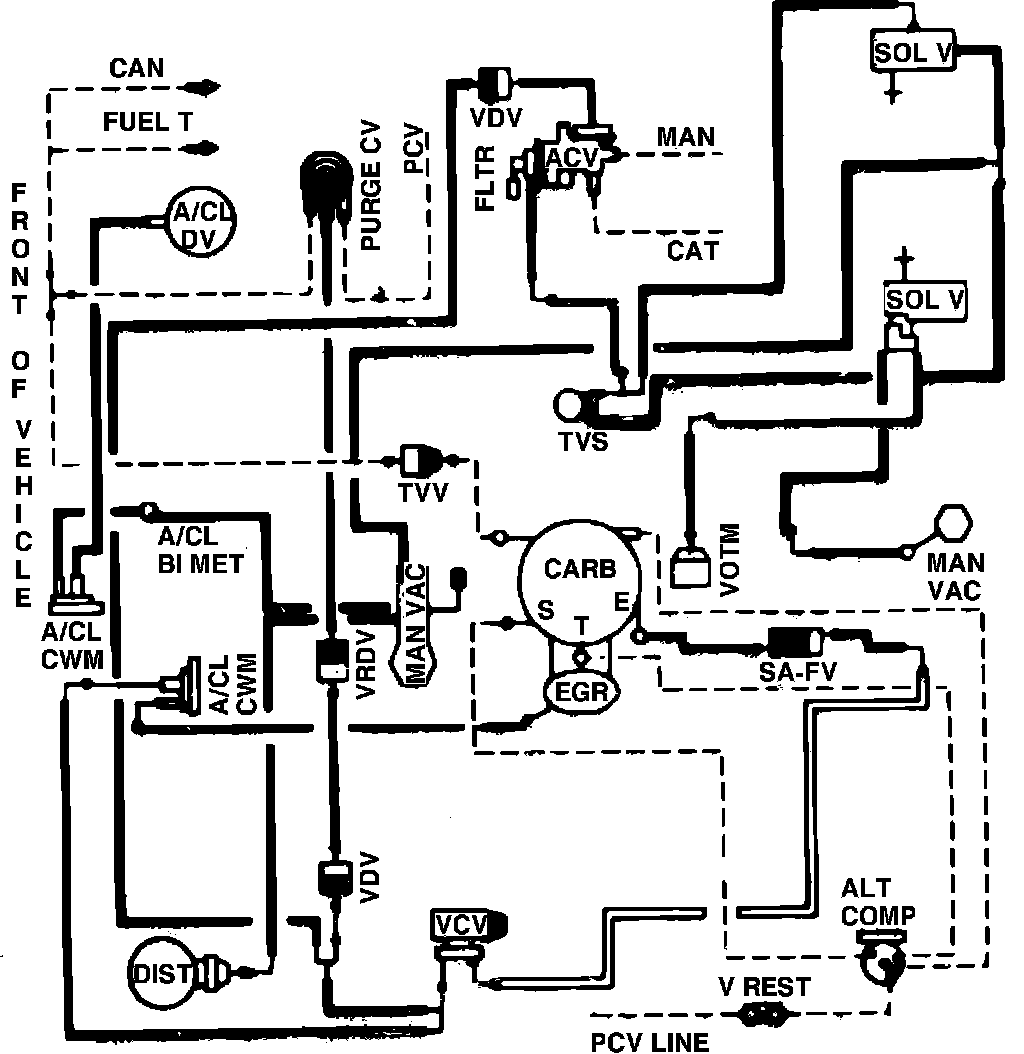

Fig. 36 Calib. Code 2-05W-R0 High Alt.
Vacuum hose routing:
