Mercury
>>
1982
>>
Lynx L4-098 1.6L VIN 2 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Fig. 8 Calib. Code 1-04S-R0 Calif. W/ A/C
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

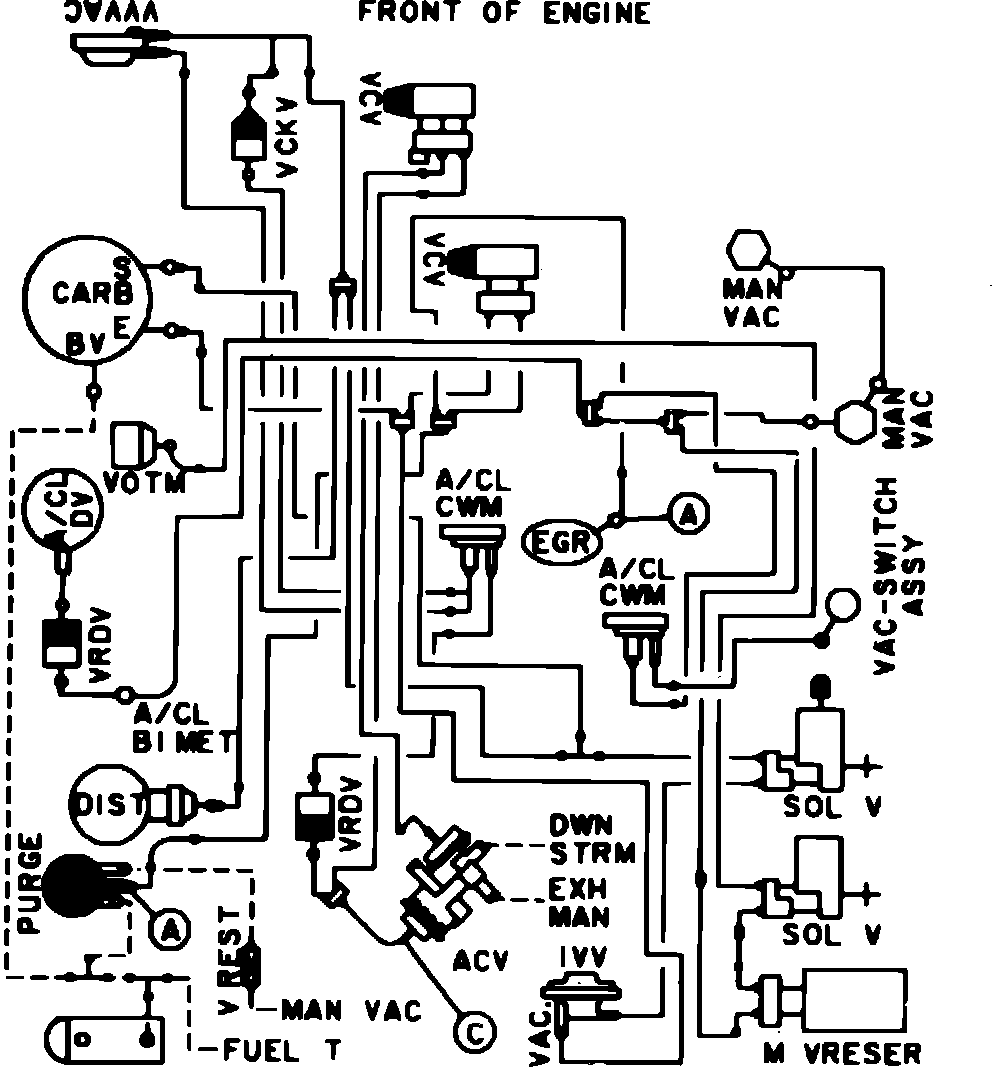

Fig. 8 Calib. Code 1-04S-R0 Calif. W/ A/C
Vacuum hose routing.:
