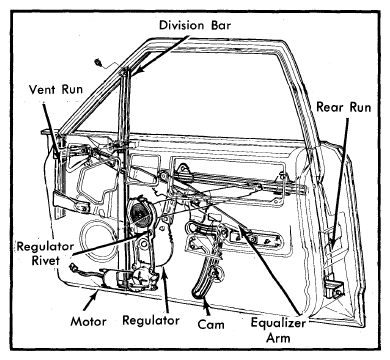

Power Mini-Vent Window Motor & Drive: Installation
- Install front vent glass and regulator loosely. Lower main glass slightly and install guides into channels, then raise and prop up windows. Install glass run retainers loosely.
- Install cam and equalizer arms at scribed marks. Bolt or rivet regulator securely. Tighten division bar fasteners. Connect wiring and lower windows slowly, and tighten front and rear run retainer screws at scribed marks. Test system for correct operation, then replace door panel.
