Remove/Install Catalytic Converter - Ar49.20-D-0100TSC
Engine 274 in model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective cloth and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when worl on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||

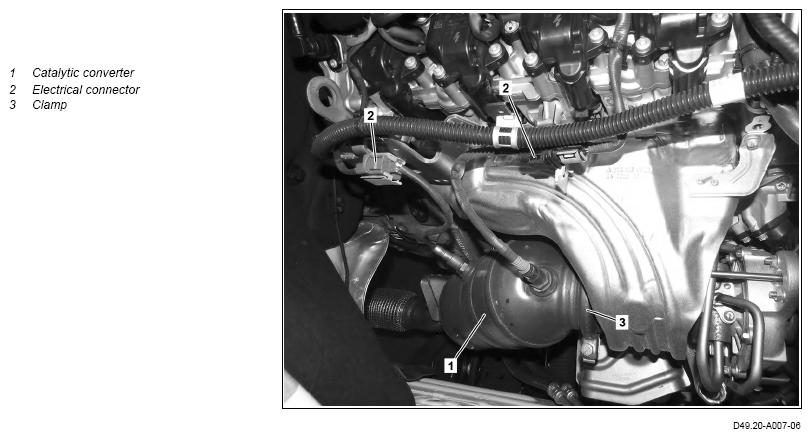

| 1 | Release and disconnect electrical connectors (2). | ||
| 2 | Open clamp (3). | *BA49.10-N-1002-02F | |
| 3 | Raise vehicle. | AR00.60-D-1000-04TS | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||

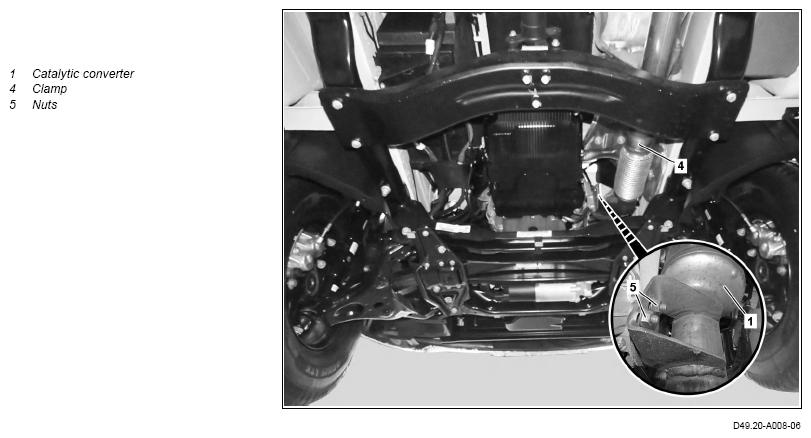

| 4 | Open the clamp (4). | *BA49.10-N-1003-02F | |
| 5 | Unscrew nuts (5). | *BA49.10-N-1001-02F | |
| 6 | Remove the catalytic converter (1) downwards. | ||
| 7 | Install in the reverse order. | ||
| Check | |||
8 |
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run to check exhaust system for leaks. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA49.10-N-1001-02F | Nut, catalytic converter to catalytic converter bracket | Nm | 25 |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA49.10-N-1002-02F | Clamp, catalytic converter to turbocharger | Nm | 17 |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA49.10-N-1003-02F | Clamp, center muffler to catalytic converter | Nm | 35 |
