Remove/Install Oil Return Flow Line Of Turbocharger - Ar09.40-D-6021TSR
Engine 651 in model 907
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove the alternator | AR15.40-D-5032TSR | |

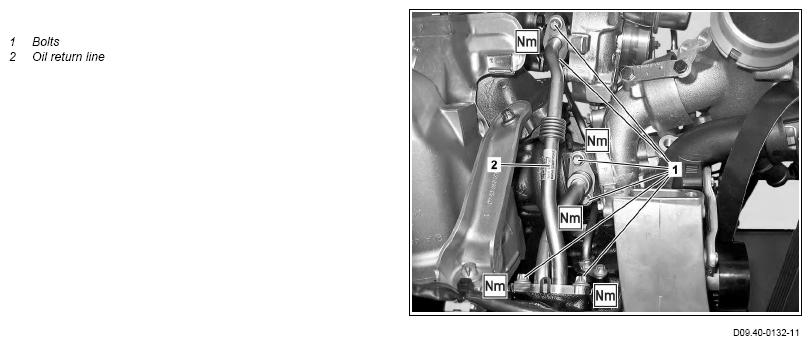

| 2 | Remove oil return feed line (2). | wsm://04 201800 68 |
|
| *BA09.40-N-1001-02TSR | |||
| 3 | Install in the reverse order. | ||
| Check | |||
| 4 | Check engine oil level. | If engine oil level is incorrect, ↓ Correct engine oil level. |
|
| Low SPAsh multigrade service engine oils (specification 229.51) | BB00.40-P-0229-51A | ||
| Low SPAsh multigrade service engine oils (specification 228.51) | BB00.40-P-0228-51A | ||
| Low SPAsh multigrade service engine oils (specification 229.31) | BB00.40-P-0229-31A | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 5 | Check for leaktightness when engine is running |
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA09.40-N-1001-02TSR | Bolt, oil return line to crankcase/turbocharger | Nm | 9 |
