| A0 |
Color code key |
96L |
| B95 |
Battery sensor |
39L |
| Code M60 |
Alternator 14 V/250 A |
61C |
| Code M60 |
Alternator 14 V/250 A |
62D |
| Code M61 |
Alternator 28 V 140 A, belt pulley D = 85 mm. |
61C |
| Code M61 |
Alternator 28 V 140 A, belt pulley D = 85 mm. |
62D |
| Code MG3 |
Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 RPM |
75G |
| Code MG3 |
Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 RPM |
31E |
| Code MG3 |
Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 RPM |
70G |
| Code MG3 |
Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 RPM |
15G |
| Code MG3 |
Engine OM 651 DE 22 LA 120 kW (163 hp) 3800 RPM |
11G |
| Code MG5 |
Engine OM 642 DE 30 LA 140 kW (190 hp) 3800 RPM |
65G |
| Code MG5 |
Engine OM 642 DE 30 LA 140 kW (190 hp) 3800 RPM |
26E |
| Code MG5 |
Engine OM 642 DE 30 LA 140 kW (190 hp) 3800 RPM |
6G |
| Code MH8 |
SULEV low-emission engine |
75G |
| Code MH8 |
SULEV low-emission engine |
70G |
| Code MH8 |
SULEV low-emission engine |
11G |
| Code MI1 |
Engine OM 651 DE 22 LA 84 kW (114 hp) 3800 RPM |
75G |
| Code MI1 |
Engine OM 651 DE 22 LA 84 kW (114 hp) 3800 RPM |
31E |
| Code MI1 |
Engine OM 651 DE 22 LA 84 kW (114 hp) 3800 RPM |
15G |
| Code MI2 |
Engine OM 651 DE 22 LA 105 kW (143 hp) 3800 RPM |
75G |
| Code MI2 |
Engine OM 651 DE 22 LA 105 kW (143 hp) 3800 RPM |
31E |
| Code MI2 |
Engine OM 651 DE 22 LA 105 kW (143 hp) 3800 RPM |
15G |
| Code MM3 |
Engine M 274 DEH 20 LA 140 kW (190 hp) 5000 RPM |
79G |
| Code MM3 |
Engine M 274 DEH 20 LA 140 kW (190 hp) 5000 RPM |
29E |
| Code MM3 |
Engine M 274 DEH 20 LA 140 kW (190 hp) 5000 RPM |
2G |
| Code MR4 |
Engine OM 651 DE 22 LA 110 kW (150 hp) 3800 RPM |
75H |
| Code MR4 |
Engine OM 651 DE 22 LA 110 kW (150 hp) 3800 RPM |
31F |
| Code MR4 |
Engine OM 651 DE 22 LA 110 kW (150 hp) 3800 RPM |
15G |
| Code MU1 |
OM 654 DE 20 LA 84 kW (114 hp) 3800 RPM |
83G |
| Code MU1 |
OM 654 DE 20 LA 84 kW (114 hp) 3800 RPM |
20G |
| Code MU1 |
OM 654 DE 20 LA 84 kW (114 hp) 3800 RPM |
24E |
| Code MU3 |
OM 654 DE 20 LA 110 kW (150 hp) 3800 RPM |
83G |
| Code MU3 |
OM 654 DE 20 LA 110 kW (150 hp) 3800 RPM |
20G |
| Code MU3 |
OM 654 DE 20 LA 110 kW (150 hp) 3800 RPM |
24E |
| Code MU5 |
OM 654 DE 20 LA 125 kW (170 hp) 3800 RPM |
83G |
| Code MU5 |
OM 654 DE 20 LA 125 kW (170 hp) 3800 RPM |
20G |
| Code MU5 |
OM 654 DE 20 LA 125 kW (170 hp) 3800 RPM |
24E |
| F150/1 |
Starter battery prefuse box |
49L |
| F150/1f3 |
Fuse 3 |
49K |
| F150/4 |
Driver seat base prefuse box |
60A |
| F150/4 |
Driver seat base prefuse box |
52A |
| F150/4 |
Driver seat base prefuse box |
68A |
| F150/4f3 |
Fuse 3 |
63B |
| F150/4f5 |
Fuse 5 |
49B |
| F152 |
Vehicle interior fuse and relay module |
36A |
| F152 |
Vehicle interior fuse and relay module |
44A |
| F152 |
Vehicle interior fuse and relay module |
28A |
| F152 |
Vehicle interior fuse and relay module |
20A |
| F152 |
Vehicle interior fuse and relay module |
12A |
| F152f31 |
Fuse 31 |
41A |
| F152f33 |
Fuse 33 |
34A |
| F152kA |
Tml 15 relay 1 |
43A |
| F152kB |
Tml 15 relay 2 |
36A |
| F152kC |
Tml. 50 starter relay |
13A |

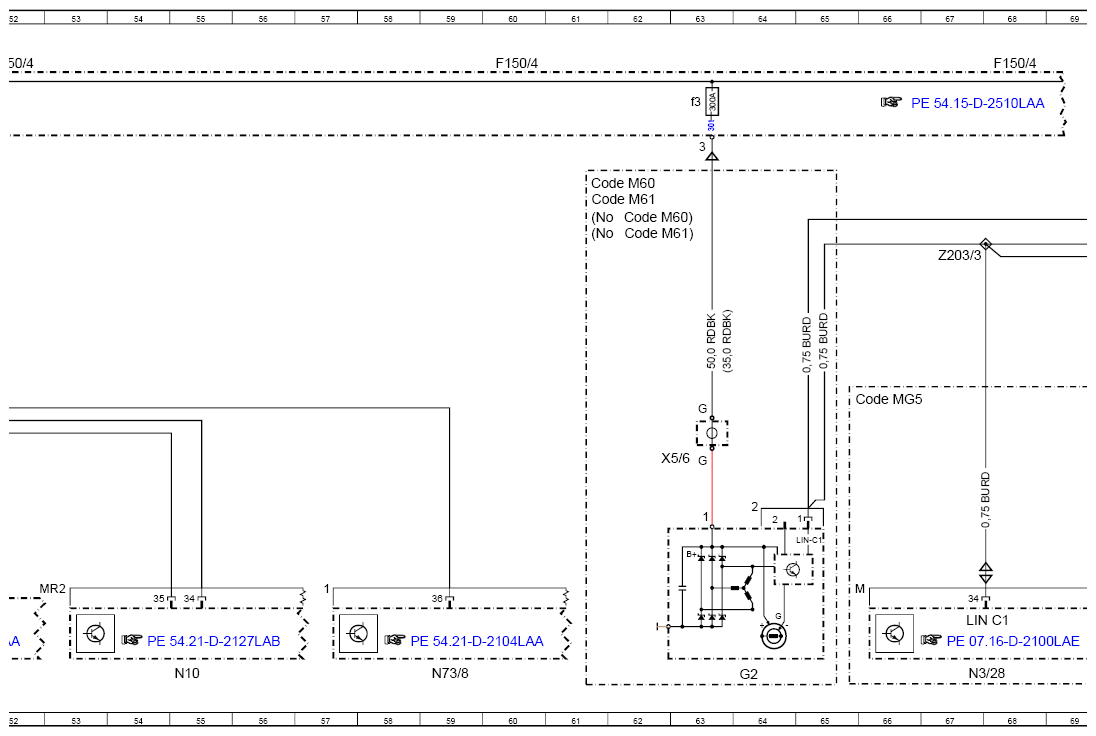

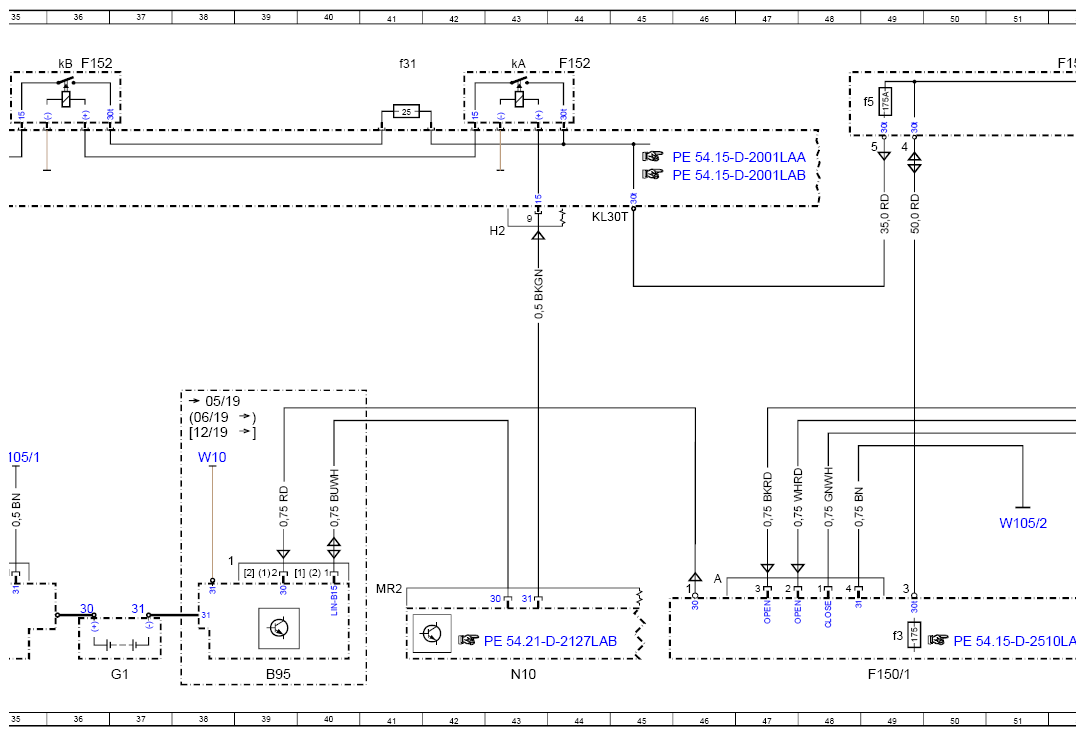

| G1 |
On-board electrical system battery |
37L |
| G2 |
Alternator |
64L |

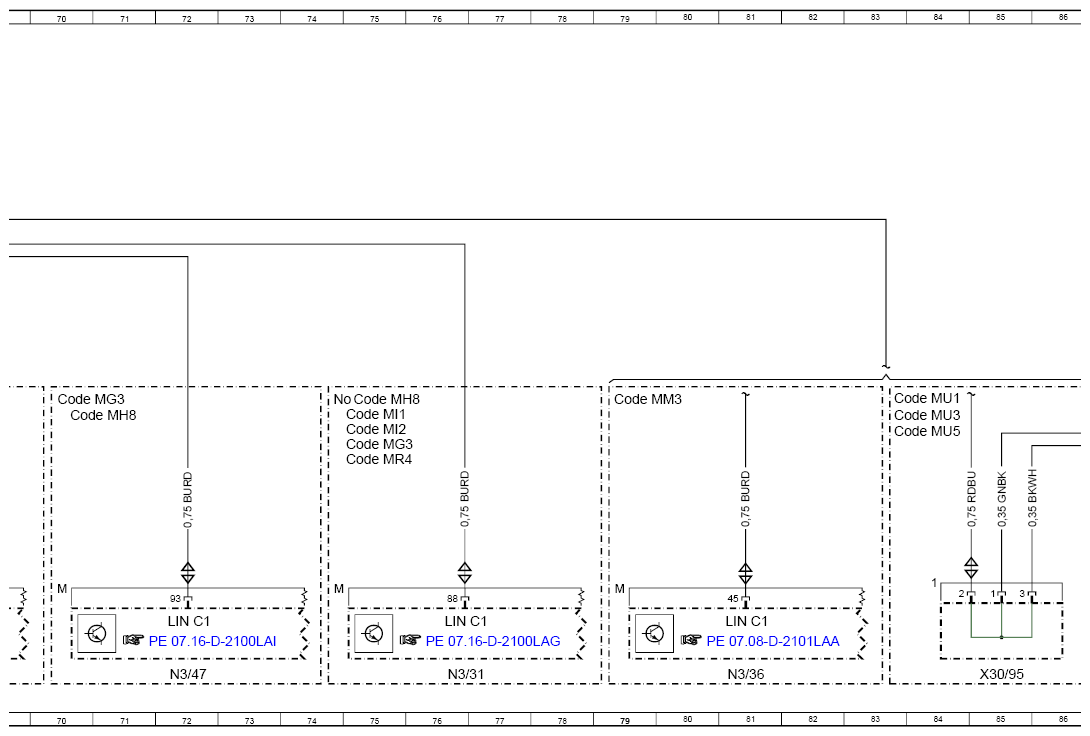

| LIN C1 |
Drive train LIN |
67K |
| LIN C1 |
Drive train LIN |
72K |
| LIN C1 |
Drive train LIN |
76K |
| LIN C1 |
Drive train LIN |
81K |
| LIN C1 |
Drive train LIN |
88K |
| LIN C1 |
Drive train LIN |
92K |

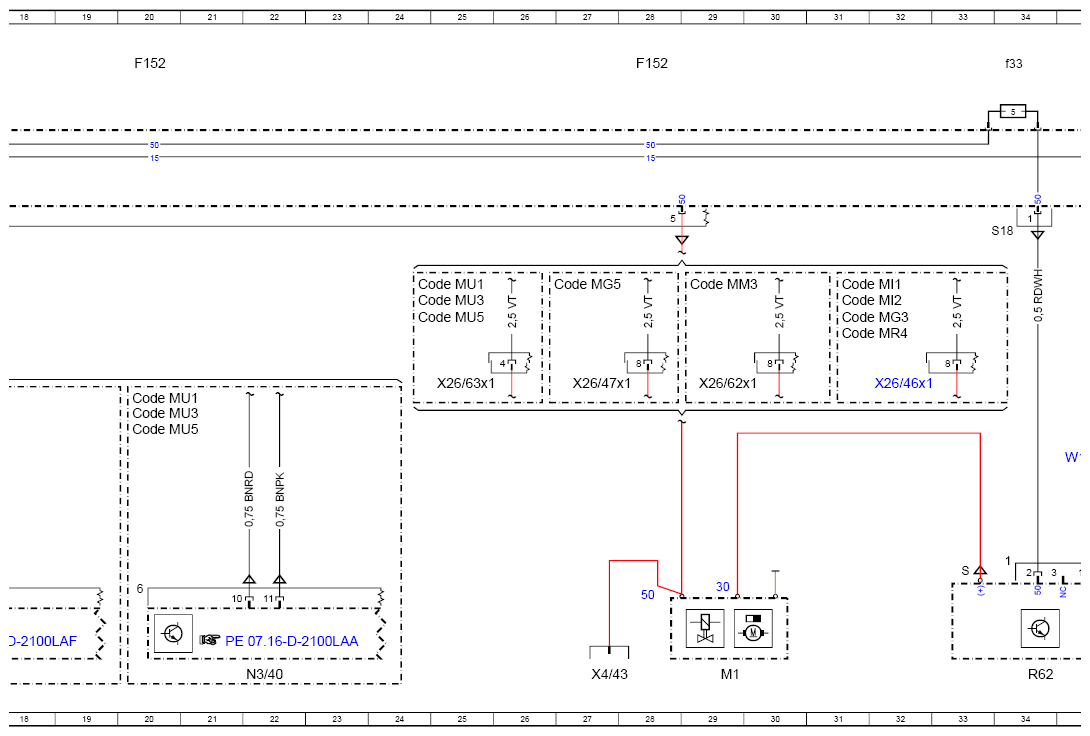

| M1 |
Starter |
29L |

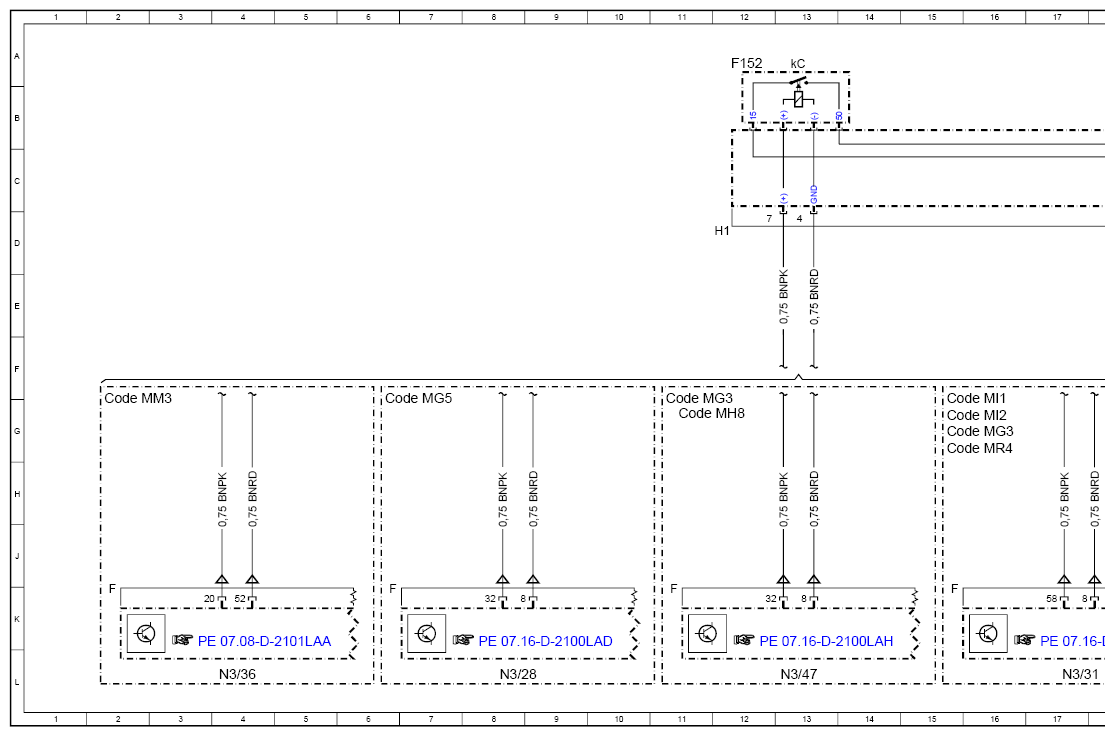

| N10 |
SAM control unit |
43L |
| N10 |
SAM control unit |
55L |
| N14/8 |
Glow output stage |
88L |
| N3/28 |
CDI control unit |
8L |
| N3/28 |
CDI control unit |
67L |
| N3/31 |
CDI control unit |
17L |
| N3/31 |
CDI control unit |
76L |
| N3/36 |
ME-SFI [ME] control unit |
4L |
| N3/36 |
ME-SFI [ME] control unit |
81L |
| N3/40 |
CDI control unit |
22L |
| N3/40 |
CDI control unit |
92L |
| N3/47 |
CDI control unit |
13L |
| N3/47 |
CDI control unit |
72L |
| N73/8 |
Electronic ignition lock (EZS) control unit |
59L |
| R62 |
Voltage dip limiter |
34L |
| W10 |
Battery ground point |
38H |
| W105/1 |
Driver seat frame ground point 1 |
35H |
| W105/2 |
Driver seat frame ground point 2 |
51J |
| X26/46x1 |
Engine wiring harness electrical connector 1 |
32F |
| X26/47x1 |
Engine wiring harness electrical connector 1 |
27F |
| X26/62x1 |
Engine/MWH electrical connector |
29F |
| X26/63x1 |
Engine/MWH electrical connector 1 |
25F |
| X30/95 |
LIN for drive (LIN C1) potential distributor |
85L |
| X4/43 |
Jump-start connection point electrical connector |
27L |
| X5/6 |
Alternator electrical connector |
63H |
| Z203/3 |
Connector sleeve/LIN bus |
67D |
