Remove/Install Bonded Side Window - Ar67.30-D-2400TS

Model 907.6/7/8

MODIFICATION NOTES

22.07.2019 Picture changed   AR67.30-D-0005-03TS
22.07.2019 Factual information added Operation step 2 AR67.30-D-0005-03TS
14.08.2019 Picture changed   AR67.30-D-0005-03TS
14.08.2019 Factual information added Operation step 2 AR67.30-D-0005-03TS

Shown on model 907.7 with code T16 (right sliding door), right side of vehicle

G13788911
G13788912
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Notes on removal/installation of windows   AH67.10-P-1000-02RT
  Notes on carrying out repair work in the vehicle interior   AH68.00-N-0001-01S
REMOVING Remove
1 Lower one side window of a front door.
2 Check adjustment of sliding door. Model 907.6/7/8
with code T16 (Sliding door right)
Model 907.6/7/8
with code T19 (Sliding door left)
Gap dimensions of sliding door
*BE60.00-N-1009-01TS
    SPECIAL TOOL Feeler gauge
If the adjustment of the sliding door is not correct,

Adjust sliding door.
Fig 1
      AR72.16-D-1023TS

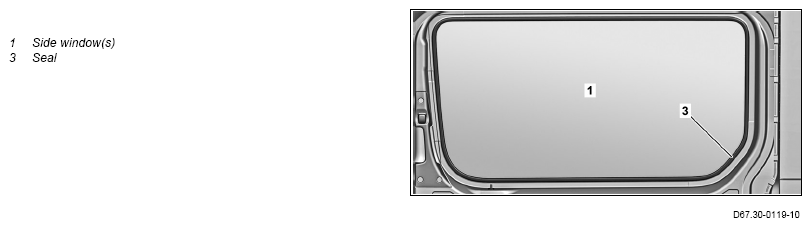

3 Remove seal (3) of the side window (1). IMPORTANT Seal (3) is accessible from the vehicle interior.
WARNING Risk of injury  from cutting wire tearing or becoming hot and from splinters of glass wher cutting out bonded windows Wear protective gloves and safety glasses. AS67.00-Z-0004-01A
4 Cut out respective side window (1) with windshield removal tool.   AR67.00-D-0001-01TS
    NOTES Carefully cut out side window (1). Lift adjacent component parts (e.g. roof lining) when cutting out.
Otherwise the adjacent components can be damaged.
IMPORTANTCommercially available devices/tools
Windshield removal tool case
IMPORTANT Punch tubular probe for cutting wire through adhesive seam at an easily accessible point.

CLEAN Clean
5 Remove remaining adhesive material from body flange. IMPORTANT Cut residual adhesive down to approx. 1 mm and remove loose adhesive material.
6 Vacuum off any glass splinters and contamination. IMPORTANTCommercially available devices/tools
Wet and dry vacuum cleaner

INSTALLING Install
7 Apply primer to the primed surface on the body flange.
General notes about painting the body flange in the glazing area
  AH98.00-P-9408-06A
    NOTES Do not apply primer on residual adhesive material.
Otherwise, the adhesive effect will be

    impaired.
Repair kit for installing windshields, 1-component adhesive
*BR00.45-Z-1180-02A

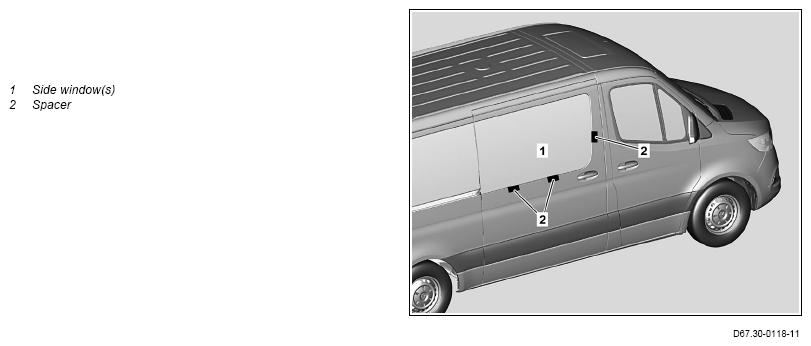

8 Attach spacers (2) to the respective window cutout. IMPORTANT To prevent the side window (1) from lowering, attach 2 SPECIAL TOOL spacers (2) to the window cutout at the bottom. One SPECIAL TOOL spacer (2) on the side is sufficient for the correct lateral alignment.
SPECIAL TOOL Spacer
Fig 3
9 Prepare adhesive cartridge. IMPORTANTCommercially available devices/tools
Electric or pneumatic squeeze gun
AR67.00-D-0001-02TS
    Repair kit for installing windshields, 1-component adhesive *BR00.45-Z-1180-02A
    SPECIAL TOOL Adapter Fig 2
10 Prepare respective side window (1) for installation.   AR67.30-D-0005-02TS
    Repair kit for installing windshields, 1-component adhesive *BR00.45-Z-1180-02A
11 Install seal (3) on the body flange.
12 Glue in respective side window (1). IMPORTANTCommercially available devices/tools
Electric or pneumatic squeeze gun
IMPORTANT Observe the gap dimensions "EC" and/or "IE".
AR67.30-D-0005-03TS
    Gap dimensions of side wall *BE60.00-N-1005-01TS
    Gap dimensions of sliding door *BE60.00-N-1009-01TS
    Repair kit for installing windshields, 1-component adhesive *BR00.45-Z-1180-02A
      Fig 1
    SPECIAL TOOL Spacer Fig 3
13 Remove cup suction tools. IMPORTANT Observe curing time of adhesive material.
14 Remove spacers (2). SPECIAL TOOL Spacer Fig 3
CLEAN Clean
15 Clean side window (1).
Number Designation Model 907.6/7/8
BE60.00-N-1005-01TS Gap dimensions of side wall Side wall to fuel filler flap Dimension "EA" mm 3,5 (±1,5)
Side wall to tail lamp Dimension "EB" mm 2,0 (±1)
Glass pane in sidewall to glass pane in sidewall Dimension "EC" mm 10 (±1)
For picture, see   AR60.00-D-0700-01TS
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 907.6/7/8
BE60.00-N-1009-01TS Gap dimensions of sliding door Sliding door to B-pillar Dimension "IA" mm 6,0 (±1)
Sliding door to longitudinal member Dimension "IB" mm 5,5 (±1)
Sliding door to C-pillar Dimension "IC" mm 6,0 (±1)
Sliding door to roof frame Dimension "ID" mm 5,5 (±1)
Glass pane in sliding door to glass pane in sidewall Dimension "IE" mm 10 (±1)
For picture, see   AR60.00-D-0700-01TS
Fig 1: Feeler Gauge (129 589 03 21 00)
G13788913
Fig 2: Adapter (000 589 86 63 00)
G13788914
Fig 3: Spacer (906 589 06 63 00)
G13788915
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1180-02A Repair kit for installing windshields, 1-component adhesive A 000 989 49 05
