Remove/Install Drive Gear Of Fuel System High-Pressure Pump - Ar07.16-D-1006TSV

Engine 642 in model 907

	Remove/install

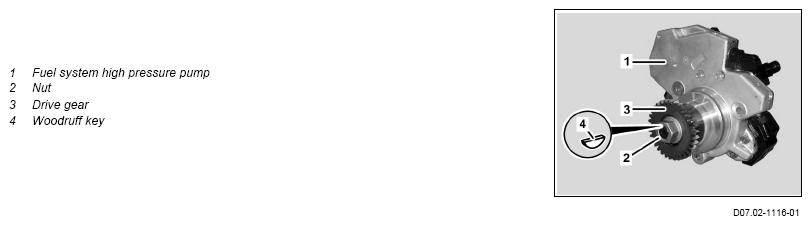

1	Remove fuel system high pressure pump (1)		AR07.02-D-1028TSV
2	Attach counterholder to drive wheel (3) and unscrew nut (2)	Do not cant counterholder. This prevents damage to the tooth flanks.
		Nut, drive wheel to fuel system high-pressure pump	*BA07.16-N-1002-03TSV
		Counterholder	Fig 1
3	Remove drive wheel (3)	Puller	Fig 2
4	Remove Woodruff key (4) at drive shaft of fuel high-pressure pump (1)	: Check Woodruff key (4). Depending on findings ↓ Install new Woodruff key (4).
5	Install in the reverse order

COMMON RAIL DIESEL INJECTION SYSTEM

Number	Designation		Engine 642 in model 907
BA07.16-N-1002-03TSV	Nut, drive wheel to fuel system high-pressure pump	Nm	70

Fig 1: Counterholder (642 589 00 40 00)

Fig 2: Puller (124 589 04 33 00)
