Remove/Install Leak Oil Line To Fuel Injectors - Ar07.03-D-9110TSR
Engine 651 in model 907
| Risk of explosion caused by fuel Igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure | Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized. | AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes about Common-Rail components | AH07.16-P-0002-01TX | ||
| Remove | |||
| 1 | Remove engine cover. | AR01.10-D-2405TSR | |

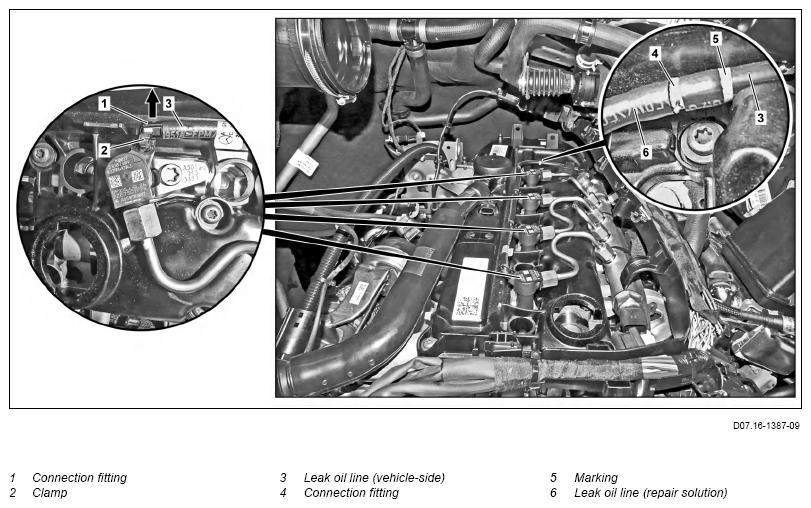

| 2 | Remove connection fittings (1) from fuel injectors. | wsm://04 201900 73 |
|
| 3.1 | Cut through the leak oil line (3) vertical to its longitudinal axis in front of the white marking (5). | If no leak oil line (6) has been installed as a repair solution yet. On the end of the leak oil line (3) that remains in the vehicle, there must still be 10 mm of the leak oil line (3) in front of the white marking (5). Otherwise, the leak oil line (6) cannot be correctly installed. |
|
| 3.2 | Remove the leak oil line (6) from the leak oil line (3) that remains in the vehicle. | If a leak oil line (6) has already been installed as a repair solution. | |
| Install | |||
| 4 | Connect the leak oil line (6) to the leak oil line (3) that remains in the vehicle. | ||
| 5 | Apply lubricant to the O-rings of the connection fittings (1). | Special lubricant | *BR00.45-Z-1055-06A |
| 6 | Attach the connection fittings (1) of the leak oil line (6) at the fuel injectors. | Ensure that the connection fittings (1) at the fuel injectors are seated correctly. Otherwise the connection fittings (1) could be damaged.
|
|
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Check fuel system in the area of the leak oil line (6) for leaks with engine running. | ||
| 8 | Install engine cover. | AR01.10-D-2405TSR |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1055-06A | Special lubricant | A 000 989 36 60 |
