Wiring Diagram For Distronic Distance-Pilot Controller Unit - PE30.30-P-2107-97FBA
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of model year 2019 with code 239 (Active Distance Assist DISTRONIC) Controller unit A108/1
| Code: | Designation: | Position: |
|---|---|---|

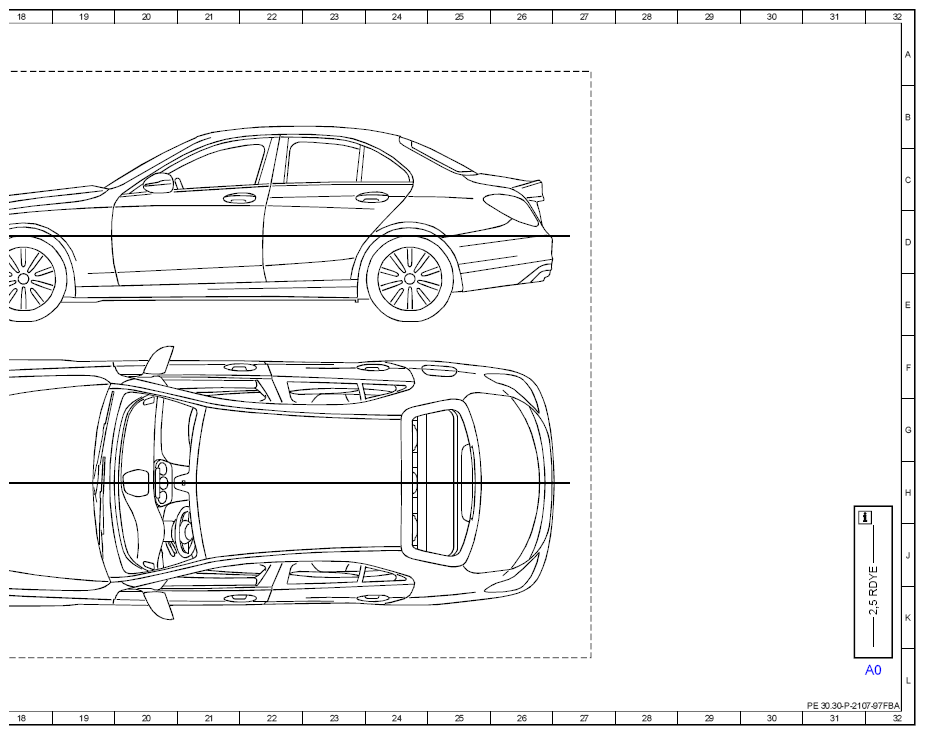

| A0 | Use of wiring diagrams | 32L |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 5A |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 13A |
| A108/1 | DISTRONIC Distance-Pilot controller unit | 16A |
| Flex E | Chassis FlexRay | 8K |
| N10/8 | Rear SAM control unit | 5L |
| N73 | Electronic ignition switch control unit | 8L |
| W16/4 | Right major assembly compartment ground point | 5E |
