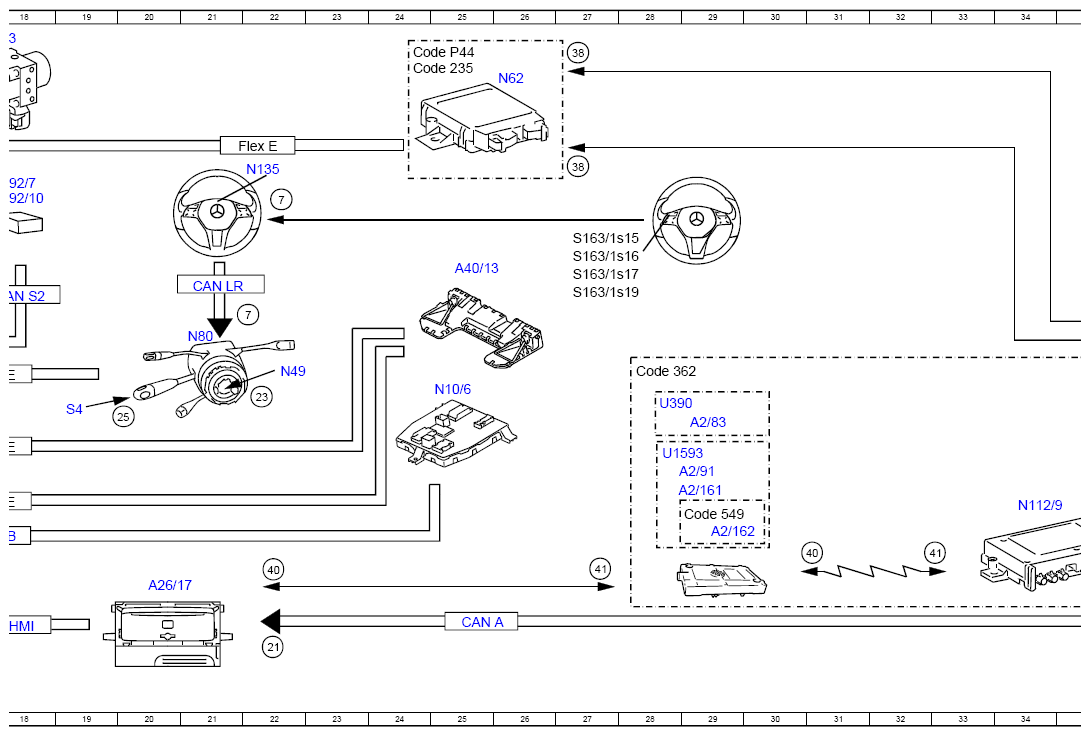

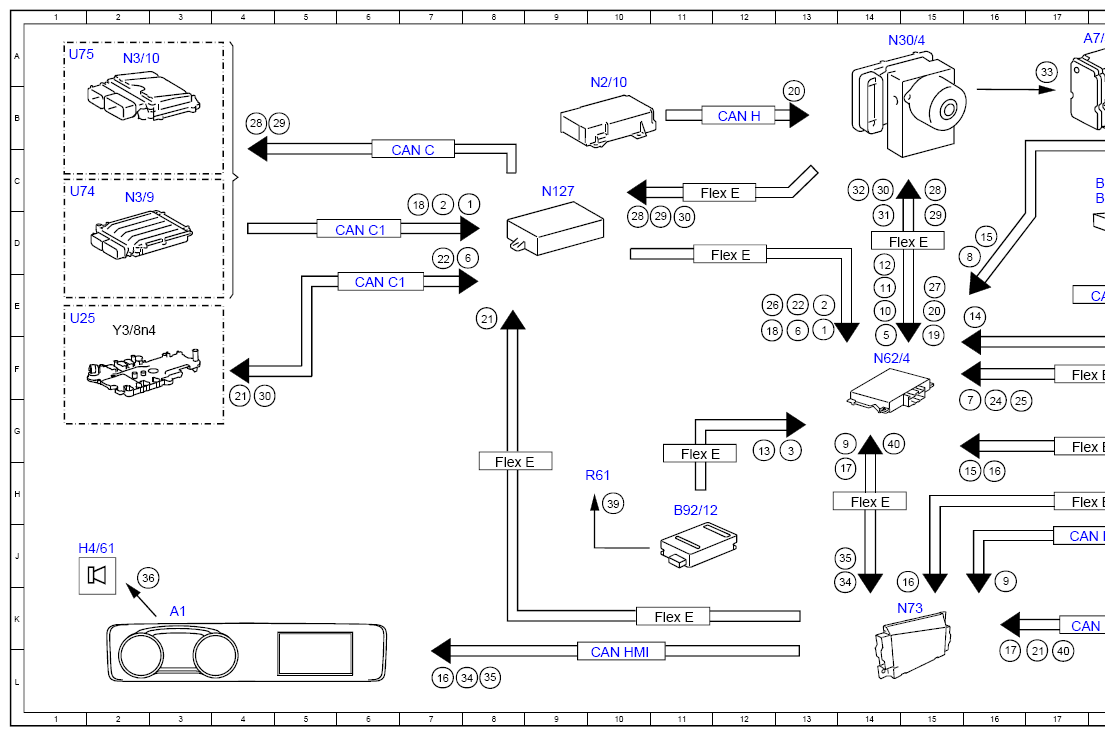

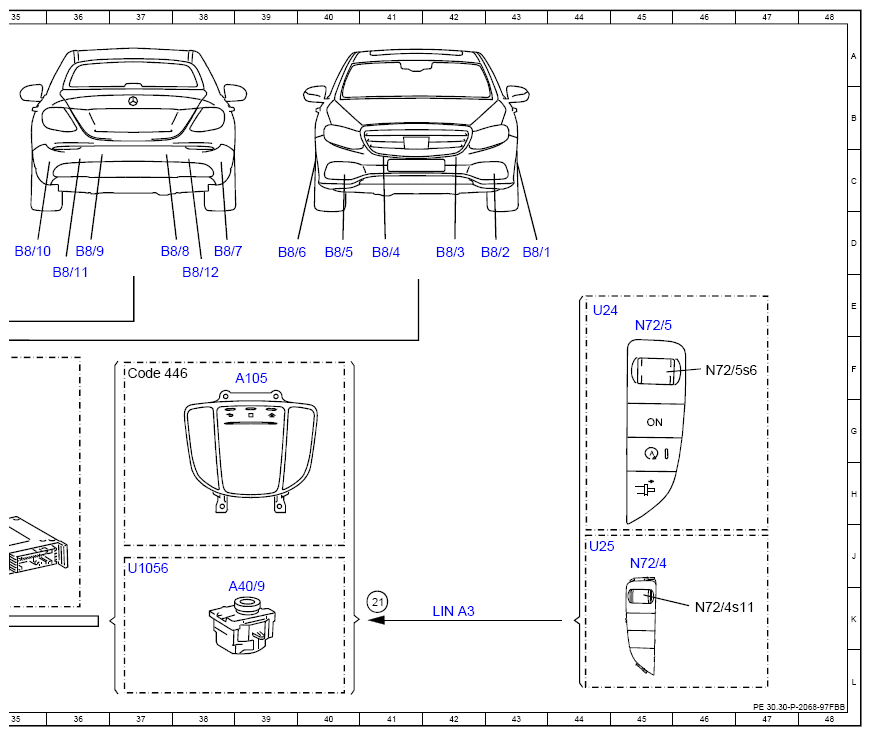

Electrical Function Schematic For Distronic Distance-Pilot - PE30.30-P-2068-97FBB
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2023 Mercedes-Benz C43 AMG, 2022 Mercedes-Benz C43 AMG, 2021 Mercedes-Benz C43 AMG, 2020 Mercedes-Benz C43 AMG, and 2019 Mercedes-Benz C43 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 205 as of model year 2019 with code 23P (Driving Assistance package) Model 253 (except 253.99) as of model year 2020 with code 23P (Driving Assistance package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 8C |
| 1 | Engine running, signal | 13E |
| 10 | Wheel speed, signal | 14E |
| 11 | Wheel rotation direction, signal | 14E |
| 12 | ESP®, status | 14D |
| 13 | Short and long-range radar sensor, signal | 12G |
| 14 | Close range radar sensors, signal | 16E |
| 15 | Object information, data package | 16D |
| 15 | Object information, data package | 16H |
| 16 | Road sign display, request | 16H |
| 16 | Road sign display, request | 15J |
| 16 | Road sign display, request | 7L |
| 17 | GPS, signal | 14H |
| 17 | GPS, signal | 16K |
| 18 | Available torque, signal | 7C |
| 18 | Available torque, signal | 12E |
| 19 | Braking torque, signal | 15F |
| 2 | Drivetrain operational, signal | 70 |
| 2 | Drivetrain operational, signal | 13E |
| 20 | Speed, turn rate and lateral acceleration, signal | 13B |
| 20 | Speed, turn rate and lateral acceleration, signal | 15E |
| 21 | DYNAMIC SELECT switch, status | 4F |
| 21 | DYNAMIC SELECT switch, status | 8E |
| 21 | DYNAMIC SELECT switch, status | 17K |
| 21 | DYNAMIC SELECT switch, status | 22K |
| 21 | DYNAMIC SELECT switch, status | 41K |
| 22 | Transmission mode, signal | 7D |
| 22 | Transmission mode, signal | 13E |
| 23 | Steering wheel angle sensor, signal | 22G |
| 24 | Steering wheel angle, signal | 16G |
| 25 | Combination switch, status | 16G |
| 25 | Combination switch, status | 20G |
| 26 | Accelerator pedal position, signal | 12E |
| 27 | Brake pedal, status | 15E |
| 28 | Engine torque, increase request | 4B |
| 28 | Engine torque, increase request | 10D |
| 28 | Engine torque, increase request | 15C |
| 29 | Engine torque, reduce request | 5B |
| 29 | Engine torque, reduce request | 15D |
| 29 | Engine torque, reduce request | 11C |
| 3 | Radar sensor system operational, status | 13G |
| 30 | Engage targeted gear, request | 11D |
| 30 | Engage targeted gear, request | 14C |
| 30 | Engage targeted gear, request | 4F |
| 31 | Braking torque reduction, request | 14C |
| 32 | Braking torque increase, request | 14C |
| 33 | Traction system hydraulic unit, actuation | 17A |
| 34 | Warning and system messages, request | 14J |
| 34 | Warning and system messages, request | 8L |
| 35 | Warning tone, request | 8L |
| 35 | Warning tone, request | 14J |
| 36 | Speaker, actuation | 2J |
| 38 | Parking system distance sensors, signal | 27A |
| 38 | Parking system distance sensors, signal | 27C |
| 39 | Heater, actuation | 10H |
| 40 | Traffic data, signal | 14G |
| 40 | Traffic data, signal | 17L |
| 40 | Traffic data, signal | 31J |
| 40 | Traffic data, signal | 22J |
| 41 | Position data, signal | 27J |
| 41 | Position data, signal | 33J |
| 5 | Parking brake, status | 14F |
| 6 | Gear range, status | 8D |
| 6 | Gear range, status | 13E |
| 7 | Operation, signal | 16G |
| 7 | Operation, signal | 220 |
| 7 | Operation, signal | 22E |
| 8 | Active Parking Assist, status | 16D |
| 9 | Engine hood contact switch, status | 14G |
| 9 | Engine hood contact switch, status | 16J |
| A1 | Instrument cluster | 3K |
| A105 | Touchpad | 39F |
| A2/161 | Bluetooth®/WiFi antenna | 29H |
| A2/162 | Bluetooth®/WiFi antenna | 29J |
| A2/83 | WLAN antenna | 29G |
| A2/91 | Bluetooth® antenna | 29H |
| A26/17 | Head unit | 20K |
| A40/13 | Stereo multifunction camera | 25D |
| A40/9 | Audio/COMAND control panel | 39K |
| A7/3 | Traction system hydraulic unit | 18A |
| B8/1 | Outer left front parking system distance sensor | 43D |
| B8/10 | Outer left rear parking system distance sensor | 35D |
| B8/11 | Center left rear parking system distance sensor | 36E |
| B8/12 | Center right rear parking system distance sensor | 38E |
| B8/2 | Center left front parking system distance sensor | 42D |
| B8/3 | Inner left front parking system distance sensor | 42D |
| B8/4 | Inner right front parking system distance sensor | 41D |
| B8/5 | Center right front parking system distance sensor | 40D |
| B8/6 | Outer right front parking system distance sensor | 39D |
| B8/7 | Outer right rear parking system distance sensor | 38D |
| B8/8 | Inner right rear parking system distance sensor | 37D |
| B8/9 | Inner left rear parking system distance sensor | 36D |
| B92/10 | Left outer rear bumper radar sensor | 18C |
| B92/12 | Short and long-range radar sensor | 11H |
| B92/7 | Right outer rear bumper radar sensor | 18C |
| CAN A | Telematics CAN | 25K |
| CAN B | Interior CAN | 17J |
| CAN C | Engine CAN | 7C |
| CAN C1 | Drive train CAN | 6E |
| CAN C1 | Drive train CAN | 6D |
| CAN H | Vehicle dynamics CAN | 12B |
| CAN HMI | User interface CAN | 10L |
| CAN HMI | User interface CAN | 17K |
| CAN LR | Steering wheel CAN | 21E |
| CAN S2 | Radar CAN 2 | 18E |
| Code 235 | Active Park Assist | 24A |
| Code 362 | HERMES LTE | 28F |
| Code 446 | Touchpad only | 37F |
| Code 549 | Connect 20 HIGH (NTG6) | 29H |
| Code P44 | Parking package | 24A |
| Flex E | Chassis FlexRay | 14H |
| Flex E | Chassis FlexRay | 14D |
| Flex E | Chassis FlexRay | 17G |
| Flex E | Chassis FlexRay | 17F |
| Flex E | Chassis FlexRay | 12D |
| Flex E | Chassis FlexRay | 11G |
| Flex E | Chassis FlexRay | 11C |
| Flex E | Chassis FlexRay | 11K |
| Flex E | Chassis FlexRay | 8H |
| Flex E | Chassis FlexRay | 17H |
| Flex E | Chassis FlexRay | 22C |
| H4/61 | Instrument cluster speaker | 2J |
| LIN A3 | LCP LIN | 42K |
| N10/6 | Front SAM control unit | 25F |
| N112/9 | HERMES control unit | 34H |
| N127 | Drivetrain control unit | 9C |
| N135 | Steering wheel electronics | 22C |
| N2/10 | Supplemental restraint system control unit | 10B |
| N3/10 | ME-SFI [ME] control unit | 2A |
| N3/9 | CDI control unit | 2C |
| N30/4 | Electronic Stability Program control unit | 14A |
| N49 | Steering wheel angle sensor | 22F |
| N62 | Parking system control unit | 26A |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 14F |
| N72/4 | Left lower control panel | 45J |
| N72/4s11 | DYNAMIC SELECT switch | 46K |
| N72/5 | Right lower control panel | 45E |
| N72/5s6 | DYNAMIC SELECT switch | 46F |
| N73 | Electronic ignition switch control unit | 14K |
| N80 | Steering column module control unit | 21F |
| R61 | Radome heater | 9H |
| S163/1s15 | Variable speed limiter and Distance-Pilot button | 27D |
| S163/1s16 | Variable speed limiter and Distance-Pilot switch | 27D |
| S163/1s17 | Distance-Pilot switch | 27E |
| S163/1s19 | Cruise control resume switch | 27E |
| S4 | Combination switch | 19G |
| U1056 | Valid except code 446 (Touchpad only) | 37J |
| U1593 | Valid for model 253 except model 253.99 | 28G |
| U24 | Valid for manual transmission | 44E |
| U25 | Valid for automatic transmission | 1E |
| U25 | Valid for automatic transmission | 44J |
| U390 | Valid for model 205 | 28G |
| U74 | Valid for diesel engines | 10 |
| U75 | Valid for gasoline engines | 1A |
| Y3/8n4 | Fully integrated transmission control, control unit | 2E |
