Remove/Install Left Front Knock Sensor - AR15.12-P-2186MRK

Engine 264, 274 In Model 167

Shown On Engine 264

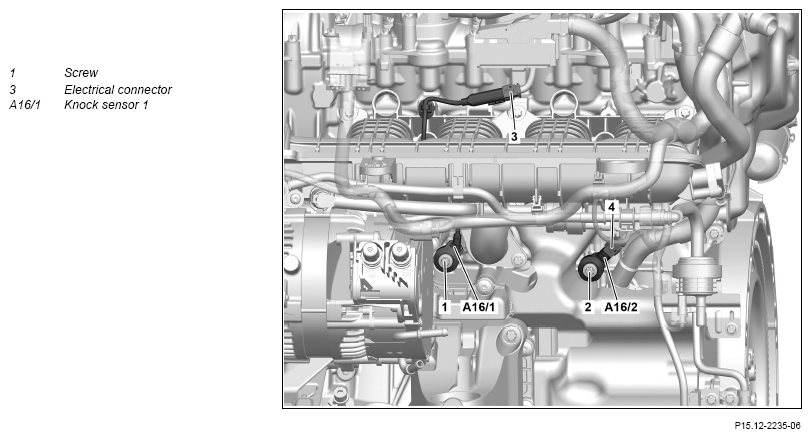

Fig 1: Left Front Knock Sensor Components Location - Engine 264 In Model 167

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2.1	Remove air filter housing.	Engine 264 in model 167	AR09.10-P-1150MRK
2.2	Remove charge-air distributor.	Engine 274 in model 167	AR09.41-P-8683MRM
3	Release and disconnect electrical connection (3).
4	Unclip electric line of knock sensor 1 (A16/1) from charge-air distributor.	Engine 264 in model 167
5	Remove center and rear sections of lower engine compartment lining.	Engine 264 in model 167	AR61.20-P-1105ME
6	Remove screw (1) and remove knock sensor 1 (A16/1).	Engine 264 in model 167Bolt knock sensor to crankcase	*BA15.10-P-1001-02H
		Engine 274 in model 167Bolt knock sensor to crankcase	*BA15.10-P-1001-02B
7	Install in the reverse order.
8	Connect vehicle diagnosis system, read out fault memory, and delete.
			AD00.00-P-2000-06ME
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
9	Conduct engine test run while checking for proper operation of the engine.

KNOCK SENSORS

Number	Designation		Engine 274
BA15.10-P-1001-02B	Bolt, knock sensor to crankcase	Nm	20

KNOCK SENSORS

Number	Designation		Engine 264
BA15.10-P-1001-02H	Bolt, knock sensor to crankcase	Nm	20
