Remove/Install Light Switch Module - AR54.25-P-3270XG

Model 463

as of Model year 2019

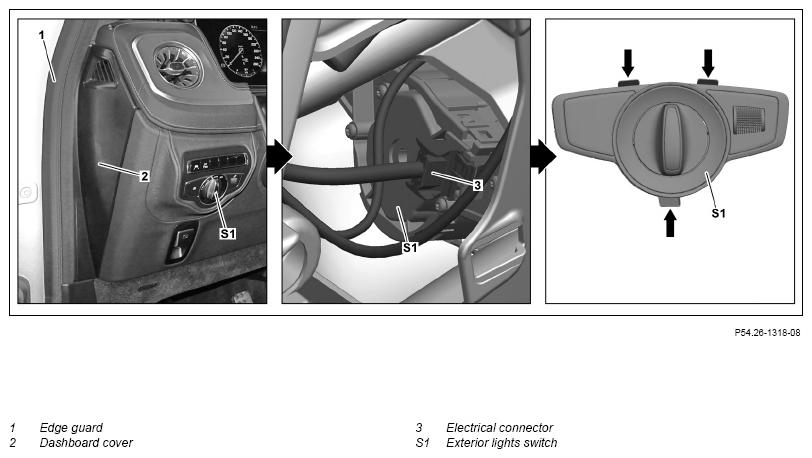

Fig 1: Light Switch Module Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Release edge guard (1) in area of instrument panel cover (2) on driver side.
2	Remove instrument panel cover (2) on driver side.	Long wedge	Fig 2
3	Release exterior lights switch (S1) from retaining clamps (arrows) and pull out far enough to gain access to the electrical connector (3).	Removal:  Release exterior lights switch (S1) from rear through opening in the instrument panel.
4	Disconnect electrical connector (3) and remove exterior lights switch (S1).
5	Install in reverse order.

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
