Remove/Install Track Rod - AR46.40-P-0200LW

Model 205

Model 213

Model 238

Model 253

Model 293

Shown on model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front wheel.		AR40.10-P-1102A

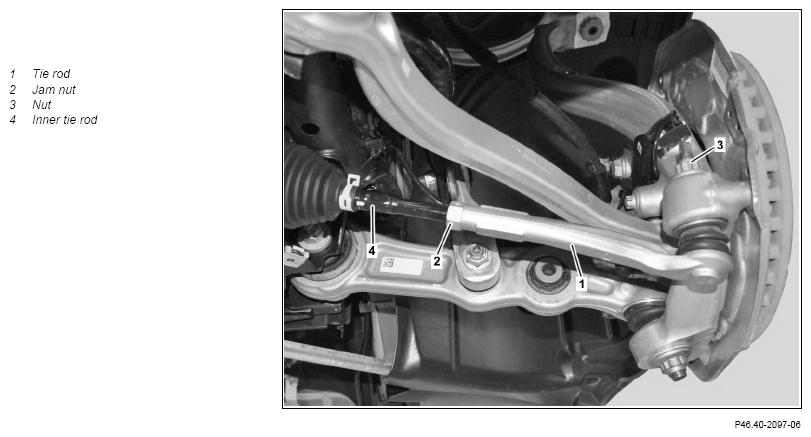

2	Counterhold tie rod (1) and loosen counternut (2).	It is essential to counterhold the tie rod (1). The tie rod (1) will otherwise be damaged. Once released. do not turn jam nut (2) any more on the tie rod (1). Jam nut, tie rod to inner tie rod	*BA46.40-P-1002-01P
3	Unscrew nut (3) and remove tie rod (1) from steering knuckle. Notes on threaded connections fastened using a tightening angle-based tightening process Notes on self-locking nuts and bolts		AH00.00-P-0020-01A
			AH00.00-N-0001-01A
		The ball head must be counterheld and an impact wrench/driver must not be used. Otherwise the ball head or steering knuckle may be damaged.
		Self-locking nut, tie rod to steering knuckle	*BA46.40-P-1001-01P
4	Unscrew tie rod (1) from inner tie rod (4).
5	Install in the reverse order.
6	Perform chassis alignment.	Model 238	AR40.20-P-0200LWO
		Model 205 Model 213 Model 253 Model 293	AR40.20-P-0200LW
