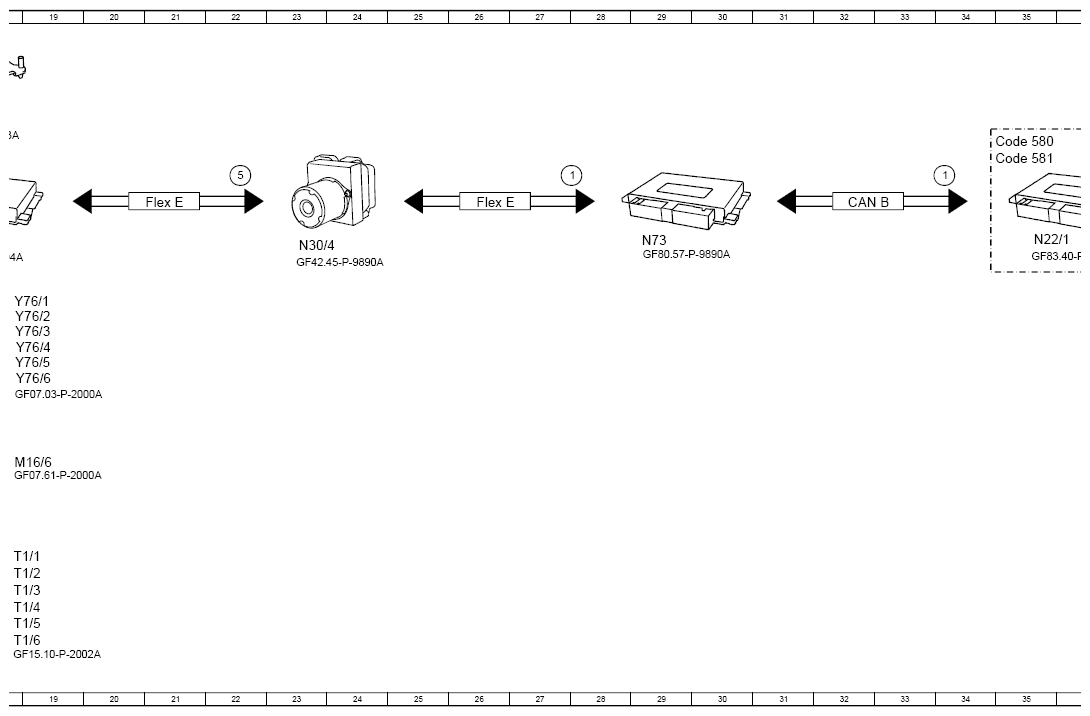

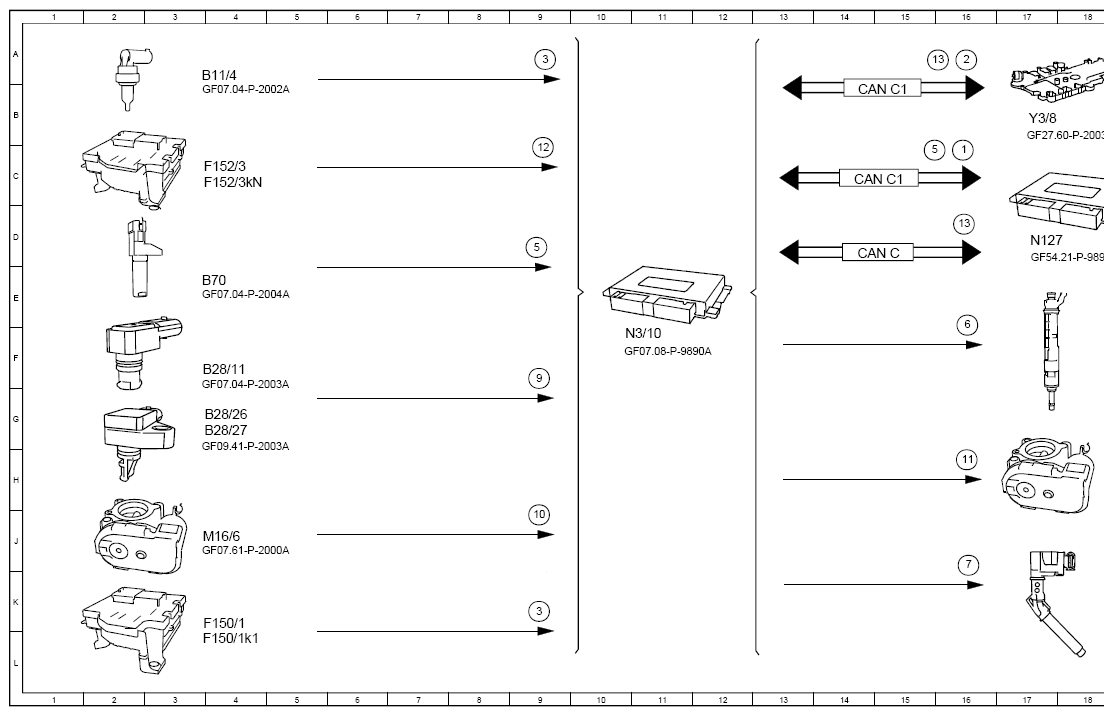

Function Schematic For RPM Control - PE07.10-P-2500-97E
Engine 256 in model 167
Engine 256 in model 213, 238 as of model year 2021
Engine 264 in model 213, 238, 257 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 16C |
| 1 | Air conditioning, status | 27C |
| 1 | Air conditioning, status | 34C |
| 10 | Throttle valve position, signal | 9J |
| 11 | Throttle valve actuator motor, actuation | 16H |
| 12 | Circuit 87, status | 9C |
| 13 | Engine running, signal | 15A |
| 13 | Engine running, signal | 16D |
| 2 | Gear range, status | 16A |
| 3 | Circuit 30, status | 9A |
| 3 | Circuit 30, status | 9L |
| 5 | Engine speed, signal | 9E |
| 5 | Engine speed, signal | 22C |
| 5 | Engine speed, signal | 15C |
| 6 | Wheel speed, signal | 16F |
| 7 | Fuel injectors, actuation | 16K |
| 9 | Engine load, signal | 9G |
| B11/4 | Coolant temperature sensor | 4B |
| B28/11 | Pressure sensor downstream of air filter | 4G |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 4G |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 4H |
| B70 | Crankshaft Hall sensor | 4E |
| CAN B | Interior CAN | 32D |
| CAN C | Engine CAN | 14E |
| CAN C1 | Drive train CAN | 14B |
| CAN C1 | Drive train CAN | 14C |
| Code 580 | Air conditioning | 34C |
| Code 581 | Automatic air conditioning | 34C |
| F150/1 | Starter battery pre-fuse box | 4L |
| F150/1k1 | Battery disconnect switch relay | 4L |
| F152/3 | Engine compartment fuse and relay module | 4C |
| F152/3kN | Circuit 87M relay | 4D |
| Flex E | Chassis FlexRay | 21D |
| Flex E | Chassis FlexRay | 26D |
| M16/6 | Throttle valve actuator | 19H |
| M16/6 | Throttle valve actuator | 4J |
| N127 | Drivetrain control unit | 17D |
| N22/1 | Climate control control unit | 35D |
| N3/10 | ME-SFI [ME] control unit | 11F |
| N30/4 | Electronic Stability Program control unit | 23E |
| N73 | Electronic ignition switch control unit | 29D |
| T1/1 | Cylinder 1 ignition coil | 18K |
| T1/2 | Cylinder 2 ignition coil | 18K |
| T1/3 | Cylinder 3 ignition coil | 18K |
| T1/4 | Cylinder 4 ignition coil | 18K |
| T1/5 | Cylinder 5 ignition coil | 18L |
| T1/6 | Cylinder 6 ignition coil | 18L |
| Y3/8 | Fully integrated transmission control controller unit | 17B |
| Y76/1 | Cylinder 1 fuel injector | 18E |
| Y76/2 | Cylinder 2 fuel injector | 19F |
| Y76/3 | Cylinder 3 fuel injector | 19F |
| Y76/4 | Cylinder 4 fuel injector | 19F |
| Y76/5 | Cylinder 5 fuel injector | 19F |
| Y76/6 | Cylinder 6 fuel injector | 19G |
