Remove/Install Fuel Pressure And Temperature Sensor - AR07.04-P-0060MND
Engine 276.8 In Model 213
Engine 276.8 In Model 238
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Notes on battery | AH54.10-P-0001-01A | |
| General information on work on gasoline direct injection system | AH07.00-P-2000-01A | ||
| Remove | |||
| 1 | Disconnect ground line at battery | Engine 276.8 in model 213 | AR54.10-P-0003LW |
| Engine 276.8 in model 238 | AR54.10-P-0003LWO | ||
| 2 | Remove left-hand air filter housing | AR09.10-P-1151MND | |
| 3 | Remove soundproofing of rail (4) | ||

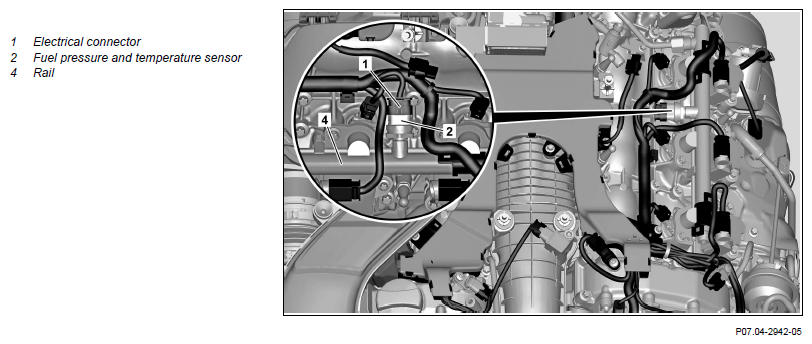

| 4 | Release and disconnect electrical connection (1) | ||
| 5 | Clean rail (4) in the area of the fuel pressure and temperature sensor (2) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 6 | Remove fuel pressure and temperature sensor (2) from rail (4) | ||
| Install | |||
| 7 | Mount new fuel pressure and temperature sensor (2) on rail (4) | *BA07.52-P-1002-01G | |
| 8 | Connect and lock electrical connection (1) | ||
| 9 | Install soundproofing for rail (4) | ||
| 10 | Install left-hand air filter housing | AR09.10-P-1151MND | |
| 11 | Connect ground line to battery | Engine 276.8 in model 213 | AR54.10-P-0003LW |
| Engine 276.8 in model 238 | AR54.10-P-0003LWO | ||
| Check | |||
| 12 | Read out fault memory and clear if necessary | ||
| Engine 276.8 in model 238 | AD00.00-P-2000-06LWO | ||
| Engine 276.8 in model 213 | AD00.00-P-2000-04B | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 13 | Carry out an engine test run and check fuel system for leaktightness |
FUEL DISTRIBUTOR
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA07.52-P-1002-01G | Pressure and temperature sensor to fuel distributor | Nm | 33 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
