Remove/Install Keyless-Go Control Unit - AR80.61-P-0002LWM
Model 205 (except 205.013/053/054/213/253)
as of model year 2019
Shown on model 205.0
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Carry out commissioning of the KEYLESS-GO control unit (N69/5). | When replacing KEYLESS-GO control unit (N695). | |
| AD00.00-P-2000-04B | |||
| 2 | Remove trunk recess trim or load compartment well. | Model 205 (except 205.013/053/054/213/253) as of model year 2019 Model 205.0 (except 205.013/053/054), 205.1/3 as of model year 2019 |
AR68.30-P-4600LW |
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

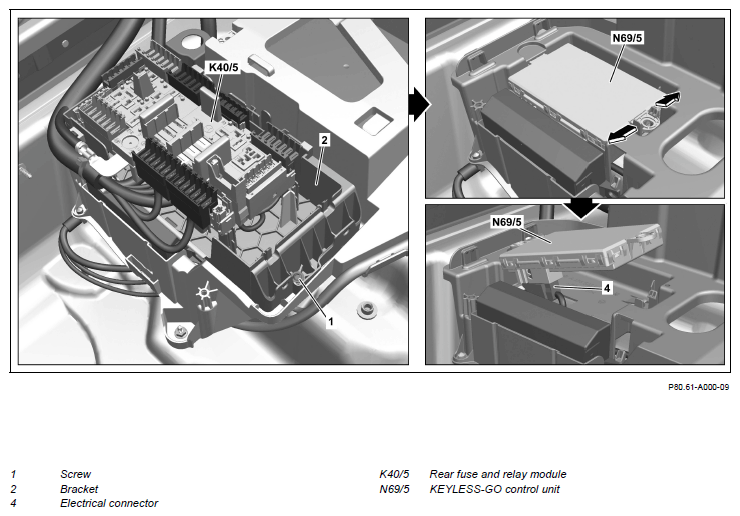

| 4 | Unscrew bolt (1). | as of model year 2019 Screw (1) is located in the direction of travel at the front on bracket (2). |
|
| 5 | Guide out bracket (2) with rear passenger compartment fuse and relay module (K40/5) and place to one side with connected lines. | ||
| 6 | Release KEYLESS-GO control unit (N69/5) from the mount (arrows) and guide out until the electrical connector (4) is accessible. | ||
| 7 | Disconnect the electrical connector (4) and remove KEYLESS-GO control unit (N69/5). | ||
| 8 | Install in the reverse order. |
