Cut Off Spring Bracket Of Rear Axle Spring - Ar61.25-D-6155-01TS

Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.

AS00.00-Z-0017-01A

Model 907.1/2

The next steps are shown on the left side of the vehicle for model 907.233 and must be performed in a similar way in the event of damage on the right side of the vehicle.

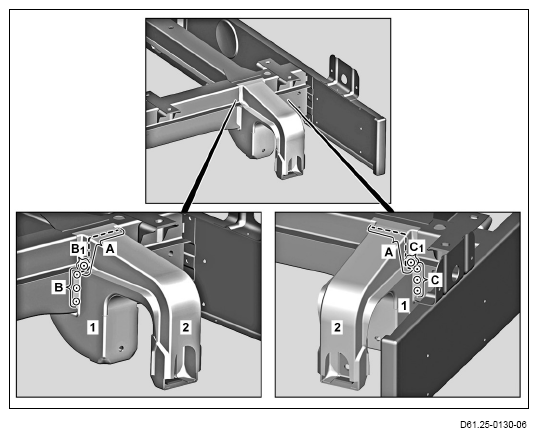

1. Scribe separation line on upper section (2) of spring bracket (area A).
2. Disconnect upper section (2) at separating point (area A).
3. Expose spot welds (areas B, B₁ , C, and C₁ ).
4. Cut out spot welds (areas B, B₁ , C, and C₁ ).

   Cut out spot welds from the underside (areas B₁ , and C₁ ).

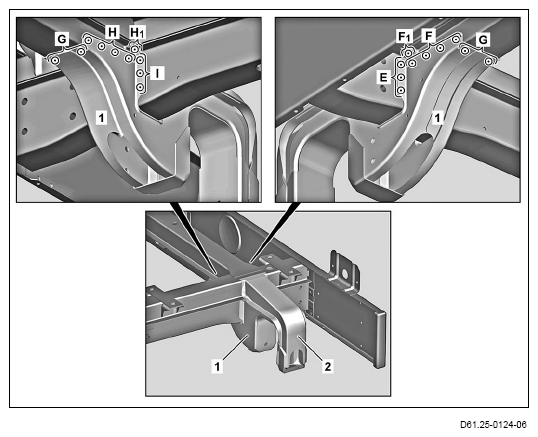

5. Model 907.1/2 Expose spot welds on lower section (1) (areas F, G, and H).
6. Model 907.1/2 Cut out spot welds (areas F, G, and H).
7. Expose spot welds on lower section (1) (areas E and I).
8. Cut out spot welds (areas E and I).
9. Remove lower section (1) together with upper section (2) of damaged spring bracket.
10. Expose weld seams on remaining section (3) (area J).
11. Cut off weld seams on remaining section (3) (area J).
12. Remove remaining section (3) of damaged spring bracket.

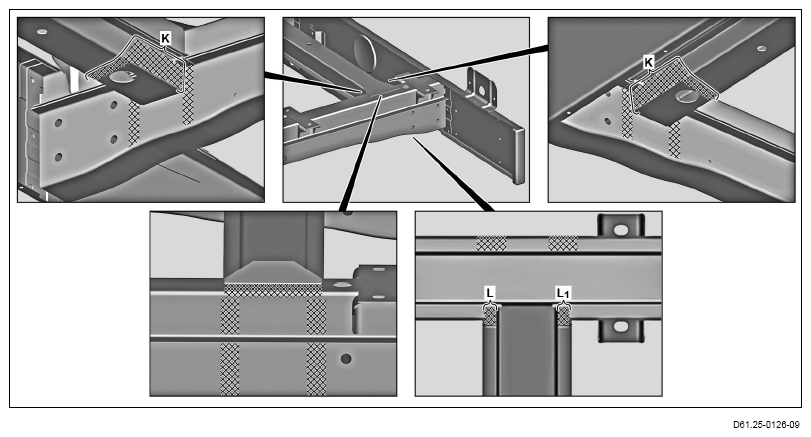

13. Model 907.1/2 Grind down mating surfaces to bare metal (area K).
14. Grind down mating surfaces to bare metal in crosshatched areas.
