Prepare Spring Bracket Of Rear Axle Spring For Installation - Ar61.25-D-6155-02TS

Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.

AS00.00-Z-0017-01A

Model 907.1/2

The next steps are shown on the left component part and must be performed in a similar way in the event of damage on the right side of the vehicle.

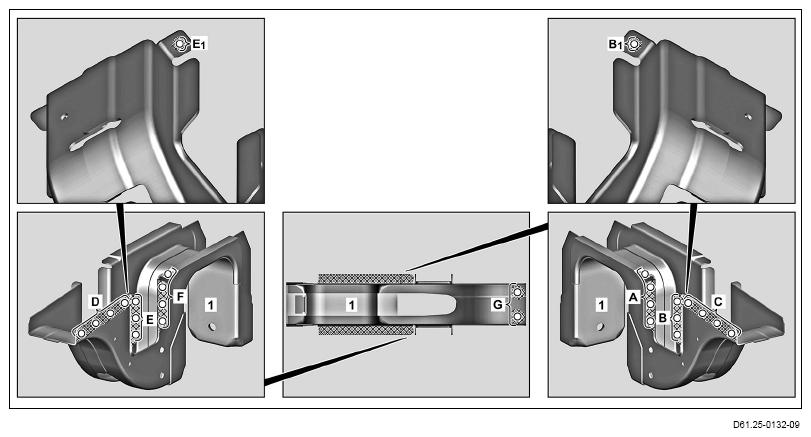

1. Drill holes on lower section of spring bracket (1) with a diameter of 7 mm (areas A, B, C, D, E, and F).
2. Model 907.1/2 Drill holes on lower section of spring bracket (1) with a diameter of 7 mm (area G).
3. Model 907.1/2 Grind down cross-hatched area around holes (area G) to bare metal on both sides.
4. Grind down mating surfaces in cross-hatched areas and around holes (areas A, B, C, D, E, and F) to bare metal.

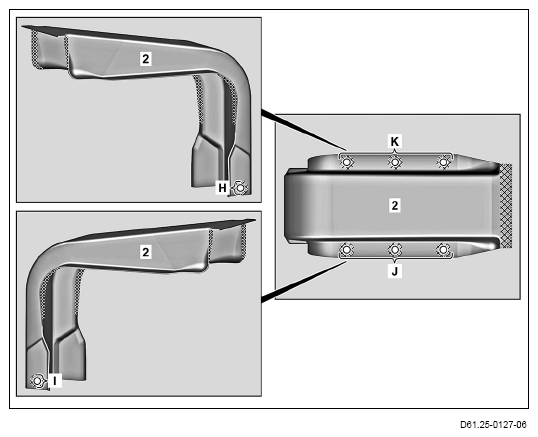

5. Drill holes on upper section of spring bracket (2) with a diameter of 7 mm (areas H, I, J, and K).
6. Grind down mating surfaces in cross-hatched areas and around holes (areas H, I, J, and K) to bare metal.
7. Remove shavings and drill chips.
