Remove/install |
|
|
| 1 |

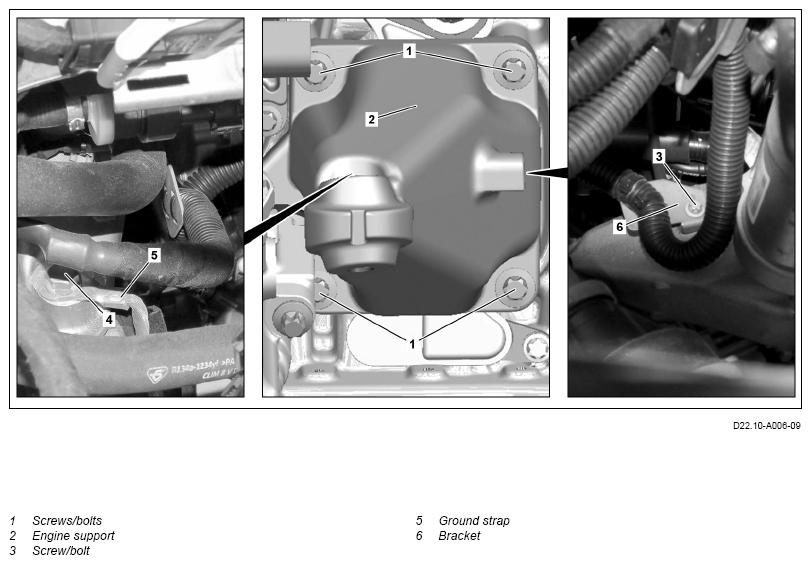

Remove left engine mount and place ground strap (5) to one side. |
|
AR22.10-D-4330TSC |
| 2 |
Remove screw/bolt (3) and place bracket (6) with electric line to one side. |
M6 |
*BA00.10-N-1002-01A |
| 3 |
Remove screws/bolts (1) and remove engine carrier (2).
Notes on threaded connections fastened using a tightening angle-based tightening process |
|
AH00.00-P-0020-01A |
|
Bolt, engine support to crankcase |
*BA22.10-N-1006-01TSR |
| 4 |
Install in the reverse order |
|
|
