Remove/Install Electronic Accelerator - Ar30.20-D-2000TS
Model 907
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

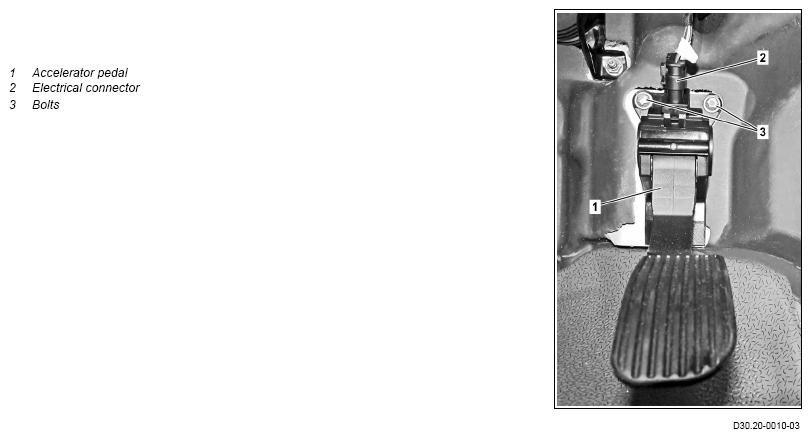

| 1 | Disconnect electrical connection (2) | ||
| 2 | Remove screws (3) | *BA30.20-N-1001-03TS | |
| 3 | Take out accelerator pedal (1) | ||
| 4 | Install in the reverse order |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA30.20-N-1001-03TS | Bolt, accelerator pedal to firewall | Nm | 8 |
