Remove/Install Leak Oil Line To Fuel Injectors - Ar07.03-D-9110TSV
Engine 642 in model 907
Shown on right cylinder head cover
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes about Common-Rail components | AH07.16-P-0002-01TX | ||
| Remove/install | |||
| 1 | Remove engine cover. | AR01.10-D-2405TSV | |
| 2 | Remove bracket (3) of glow output stage (4) and place to one side. | AR15.20-D-4500TSV | |
| 3 | Remove trim of right cylinder head cover. | AR01.20-D-5017TSV | |
| 4 | Remove trim of left cylinder head cover. | AR01.20-D-5018TSV | |
| 5 | Remove rail of left cylinder bank. | AR07.03-D-1011TSV | |

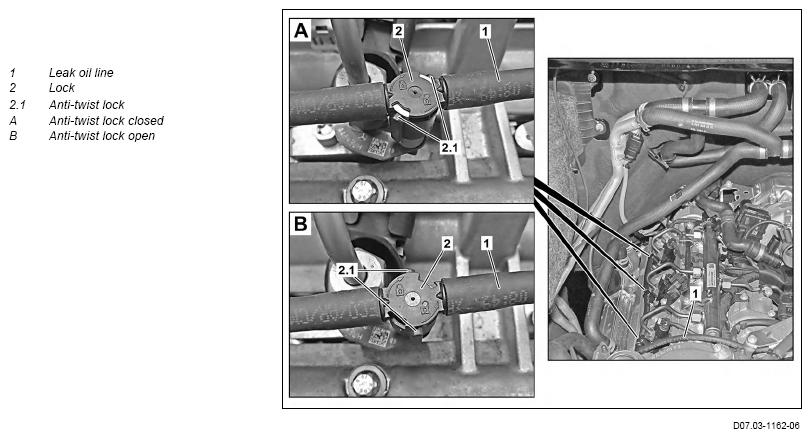

| 6 | Turn anti-twist locks (2.1) of locks (2) toward left and remove leak oil line (1) upwards from fuel injectors. | ||
| Fig 1 | |||
| 7 | Unclip leak oil line (1) at coolant thermostat (5). | ||
| 8 | Release safety clip (6) and remove leak oil line (1) from fuel line (7). | ||
Depending on the findings, ↓ Replace leak oil line (1). |
Fig 1 | ||
| 9 | Guide out leak oil line (1) at right and left cylinder head and remove. | ||
| Check | |||
| 10 | Check sealing rings at fuel injectors for leak oi line (1) for damage. | Depending on the findings, ↓ Replace damaged sealing rings. |
|
| 11 | Install in the reverse order. | ||
| Check | |||
| Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Check for leaktightness when engine is running. |
