Remove/Install Bracket For Vacuum Reservoir - Ar07.09-D-0002TSR
Engine 651 in model 907
| Remove/install | |||
| 1 | Remove vacuum reservoir | AR07.09-D-0001TSR | |

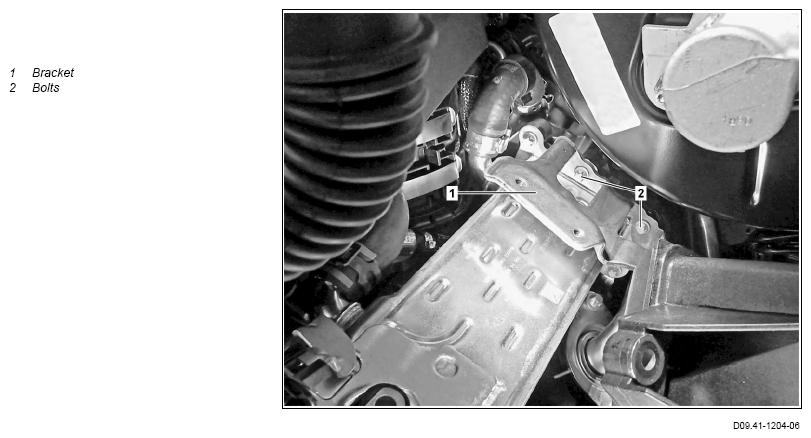

| 2 | Remove screw/bolts (2) | *BA14.20-N-1001-01TS | |
| 3 | Remove bracket (1) | ||
| 4 | Install in the reverse order |
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA14.20-N-1001-01TS | Bolt, holder/exhaust gas recirculation cooler to bypass flap | Nm | 10 |
