LOCTL Section: Set_CONFIG
The loctlID value of SET_CONFIG is used to set the vehicle network configuration of the VDA. The calling application is responsible for allocating and initializing the associated parameters described below. When the function is successfully completed, the corresponding parameter(s) and value(s) indicated in Section 23.4, IOCTL ID VALUES will be placed in effect.
| Parameter | Description |
|---|---|
| nClientID | Client ID assigned during RP1210_ClientConnect |
| nloctlID | Is set to the define SET_CONFIG |

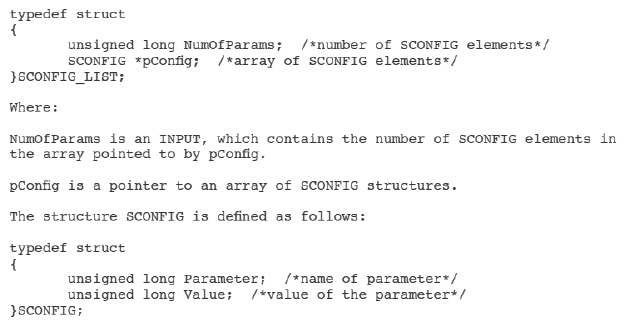

| pInput | Points to structure SCONFIG_LIST, which is defined as follows: where: Parameter is an INPUT that represents the parameter to be set (see Section 22.2 for a list of valid Parameters). Value is an INPUT that represents the value of Parameter (see Section 22.4 for a list of valid Values). |
| pOutput | NULL pointer, parameter is not used. |
| Parameter | ID Value | Valid Parameter Values | Default Value | Description |
|---|---|---|---|---|
| P1_MAX | 0x07 | 0x01-0xFFFF (.5 mS per bit) | 40 (20 mS) | For ISO9141/ISO14230 protocols, this sets the maximum inter-byte time for ECU responses |
| P3_MIN | 0x0A | 0x00-0xFFFF (.5 mS per bit) | 110 (55mS) | For ISO9141/ISO14230 protocols, this sets the minimum time between end of ECU response and start of new tester request |
| P4_MIN | 0x0C | 0x00-0xFFFF (.5 mS per bit) | 10 (5mS) | For ISO9141/ISO14230 protocols, this sets the minimum inter-byte time for a tester request |
| W0 | 0x19 | 0x00-0xFFFF (1mS per bit) | 300 | For ISO9141 protocol, this sets the minimum bus idle time before the tester starts to transmit the address byte |
| W1 | 0x0E | 0x00-0xFFFF (1mS per bit) | 300 | For ISO9141/ISO14230 protocols, this sets the maximum time from the end of the address byte to the start of the synchronization pattern |
| W2 | 0x0F | 0x00-0xFFFF (1mS per bit) | 20 | For ISO9141/ISO14230 protocols, this sets the maximum time from the end of the synchronization pattern to the start of key byte 1 |
| W3 | 0x10 | 0x00-0xFFFF (1mS per bit) | 20 | For ISO9141/ISO14230protocols, this sets the maximum time between key byte 1 and key byte 2 |
| W4 | 0x11 | 0x00-0xFFFF (1mS per bit) | 50 | For ISO9141/ISO14230 protocols, this sets the minimum time between key byte 2 and its inversion from the tester |
| W5 | 0x12 | 0x00-0xFFFF (1mS per bit) | 300 | For ISO9141/ISO14230 protocols, this sets the minimum idle bus time before the tester starts to transmit the address byte |
| TIDLE | 0x13 | 0x00-0xFFFF (lmS per bit) | 300 | For ISO14230 protocol, this sets the minimum amount of bus idle time that is needed before a fast initialization sequence will begin |
| TINIL | 0x14 | 0x00-0xFFFF (1mS per bit) | 25 | For ISO1423D protocols, this sets the duration for the low pulse in fast initialization |
| TWUP | 0x15 | 0x00-0xFFFF (1mS per bit) | 50 | For ISO14230 protocols, this sets the duration of the wake-up pulse in fast initialization |
| PARITY | 0x16 | 0 (NO_PARITY) 1 (0DD_PARITY) 2 (EVEN_PARITY) |
0 | For ISO9141/ISO14230 protocols only |
| DATA_BITS | 0x20 | 0 (8 data bits) 1 (7 data bits) |
0 | For ISO9141/ISO14230 protocols only |
| FIVE_BAUD_MOD | 0x21 | 0 - Initialization as defined in ISO9141-2 and ISO14230-4 1 - ISO 9141 initialization followed by interface sending inverted Key Byte 2 2 - ISO 9141 initialization followed by ECU sending inverted address 3 - Initialization as defined in ISO 9141 |
0 | For ISO9141/ISO14230 protocols only. Initialization for ISO 9141-2 and ISO 14230-4 include the initialization sequence as defined in ISO 9141 plus inverted key byte #2 sent from the tester to the ECU and inverted address sent from the ECU to the tester. This parameter allows either ISO9141 initialization sequence, ISO9141-2/ISO14230 initialization sequence, or hybrid versions which include only one of the extra bytes defined tor ISO9141-2 and ISO14230. |
| ISO15765_WFT_ MAX | 0x25 | 0x00 - 0xFF | 0 | For setting number of ISO15765 WAIT flow control frames. Although defaulted to 0x00 originally in the SAE J2534 specification, the parameter N_WFTmax is a system design constant from the ISO15765 document and is not transmitted in the first flow control N_PDU. The default is 40. |
| Reserved | 0x00-0xFFFF | Reserved for TMC (where not already defined in this document) | ||
| Reserved | 0x10000-0xFFFFFFFF | Vendor Specific | Vendor Specific |
