Disconnect, Connect Connector Coupling With Double Lock On Fuel Line - Ar47.25-D-4100-01TS

Risk of explosion caused by fuel igniting, risi of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A

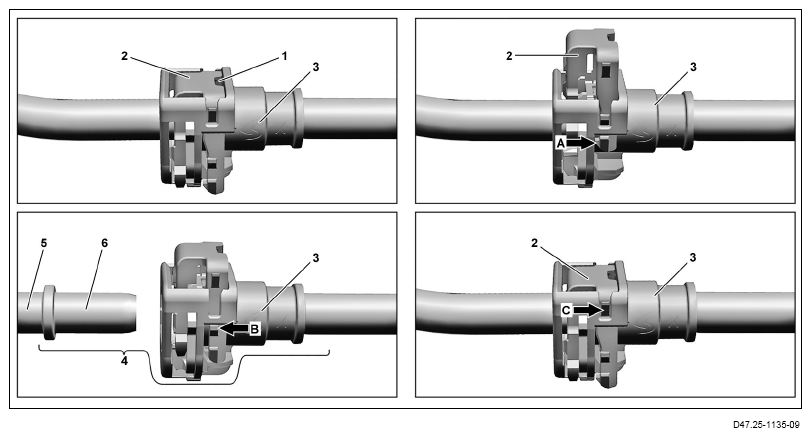

	Clip: Illustration of various states for unlocking and locking the connector coupling with double lock on fuel line	GB47.25-D-0000-00A

Model 907

MODIFICATION NOTES

14.12.2020

GB document reference added.

Disconnect connector coupling (4)

Insert suitable screwdriver into cutout (1).
Release lock clamp (2) from coupling socket (3).
To do this, pull lock clamp (2) upward with the screwdriver up to the release position (arrow A).
Disconnect connector coupling (4) from fuel line (5).
To do this, pull coupling plug (6) from coupling socket (3).

Connect connector coupling (4)
Prepare lock clamp (2) on coupling socket (3) for installation.
When reusing the old coupling socket (3).

To do this, press in the lock clamp (2) up to the connection position (arrow B).

The coupling socket (3) is located in the connection position (arrow B) in the ready for installation delivery condition.
Connect connector coupling (4) with fuel line (5).
To do this, insert the coupling plug (6) into the coupling socket (3) until the connector coupling (4) clearly locks audibly. Then, check that it is connected correctly by pulling it back slightly.

If the coupling plug (6) can be pulled out of the coupling socket (3),

↓

Insert coupling plug (6) into the coupling socket (3) again.
Lock connector coupling (4).
To this, press in lock clamp (2) on coupling socket (3) up to the lock position (arrow C).
