Remove/Install Rear Engine Support - Ar22.10-D-4360TSC

Engine 274 in model 907

MODIFICATION NOTES

15.07.2019

Reference link changed

Operation step 1

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
2	Lift transmission with major assembly mount and mounting plate until engine mount (7) is relieved.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
		Carefully lift transmission. Otherwise damage to the transmission may occur. Underlay with suitable wooden blocks.

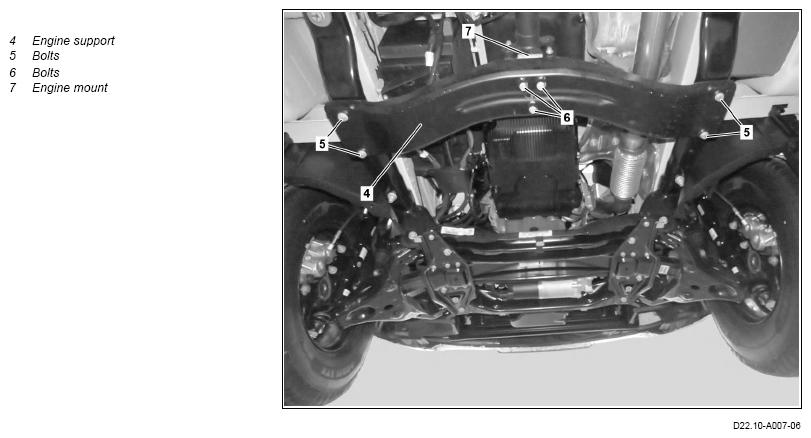

3	Remove screw/bolts (6).	Bolt, rear engine mount to rear engine support	*BA22.10-N-1003-01TSR
4	Unscrew screws (5) and remove engine carrier (4).	Screw/bolt, rear engine support to longitudinal member	*BA22.10-N-1002-01TSR
5	Install in the reverse order

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 274 in model 907
BA22.10-N-1002-01TSR	Screw/bolt, rear engine support to longitudinal member	Nm	58

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 274 in model 907
BA22.10-N-1003-01TSR	Bolt, rear engine mount to rear engine support	M8	Nm	30
		M10	Nm	58
