Remove/Install Rear Engine Support - Ar22.10-D-4360TS

Engine 642, 651 in model 907

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
2	Lift transmission with major assembly mount and mounting plate until engine mount (8) is relieved.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
		Carefully lift transmission. Transmission can otherwise be damaged. Underlay with suitable wooden blocks.

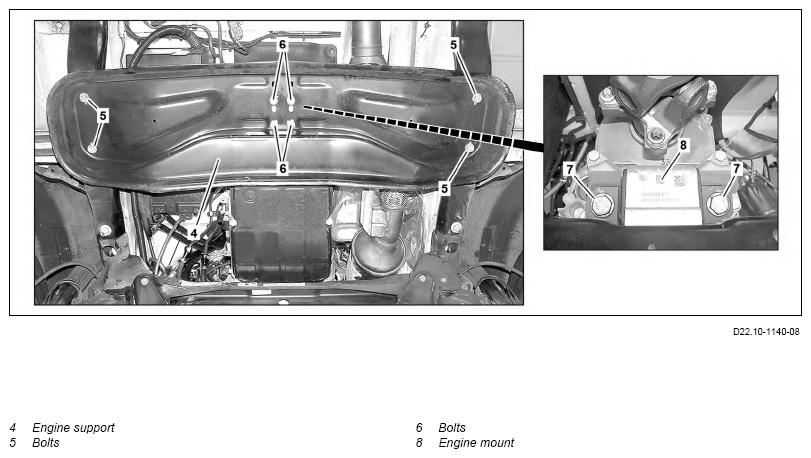

3	Remove screw/bolts (6).	Bolt, rear engine mount to rear engine support	*BA22.10-N-1003-01TSR
4	Remove engine carrier (4).	To do this, remove the screw/bolts (5). Screw/bolt, rear engine support to longitudinal member	*BA22.10-N-1002-01TSR
5	Install in the reverse order

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Engine 642 in model 907	Engine 651 in model 907
BA22.10-N-1002-01TSR	Screw/bolt, rear engine support to longitudinal member	Nm	58	58

ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation			Engine 642 in model 907	Engine 651 in model 907
BA22.10-N-1003-01TSR	Bolt, rear engine mount to rear engine support	M8	Nm	30	30
		M10	Nm	58	58
