Risk of death
caused by vehicle slipping or toppling off of the lifting platform. |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |
 |
Risk of injury.
Skin or eye injuries may result when handling hot or glowing objects. |
Wear protective gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
 |
Risk of injury
caused by scraping or cutting body parts on sharp vehicle parts |
Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels. |
AS00.00-Z-0017-01A |
| |
Information on preventing damage to electronic components due to electrostatic discharge |
|
AH54.00-P-0001-01A |
  |
Remove/install |
|
|
| 1 |
Remove washer fluid reservoir. |

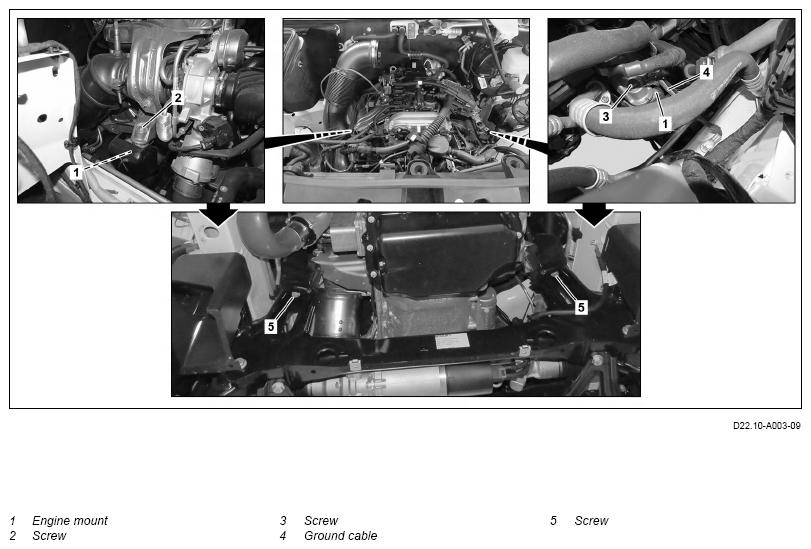

When removing left engine mount (1). |
AR82.35-D-6000TSR |
| 2 |
Remove ventilation box. |
|
AR83.10-D-0010TS |
| 3 |
Position engine support bracket and raise engine until engine mount (1) to be removed is no longer loaded. |
Raise engine carefully.
The surrounding assembly parts can get damaged otherwise. |
AR33.10-D-0100-01TS |
Mounting plates |
Fig 1 |
|
Engine lifting device |
Fig 2 |
| 4 |

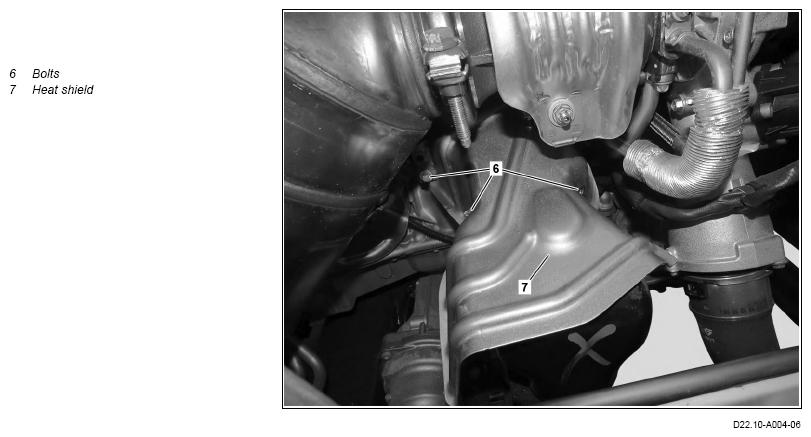

Remove screws (6) and remove heat shield (7). |
When removing right engine mount (1).
M6 |
*BA00.10-N-1002-01A |
| 5.1 |
Remove screw (3) and place ground line (4) to one side. |
When removing left engine mount (1).
Bolt, engine support to front engine mount |
*BA22.10-N-1005-01TSR |
| 5.2 |
Remove screw/bolt (2). |
When removing right engine mount (1).
Bolt, engine support to front engine mount |
*BA22.10-N-1005-01TSR |
| 6 |
Raise vehicle. |
|
AR00.60-D-1000-04TS |
| Special instructions for lifting and supporting vehicle |
|
AH00.60-N-0100-01TS |
| 7 |
Remove screw (5) of the engine mount (1) to be removed and remove the respective engine mount (1). |
Ensure engine mount (1) is seated correctly. Otherwise, entire engine suspension may be damaged.
Screw/bolt, front engine mount to front axle carrier |
*BA22.10-N-1004-01TSR |
| 8 |
Install in the reverse order. |
|
|
