Remove/Install Fuel Filter - Ar47.20-D-5510TSV
Engine 642 in model 907
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contactwith fuel. | No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove air intake pipe. | AR09.10-D-8131TSV | |
| 2 | Remove vacuum line (1) from cover of left cylinder head cover and place outside of working area. | ||
| 3 | Remove glow output stage (2) with bracket and place outside of working area. | ||
| 4 | Disconnect electrical connector (3). | ||
| 5 | Open clamps (4). | Fig 2 | |
| 6 | Remove fuel hoses (5) from fuel filter (6). | Depending on the findings, ↓ Replace affected fuel hose (5). |

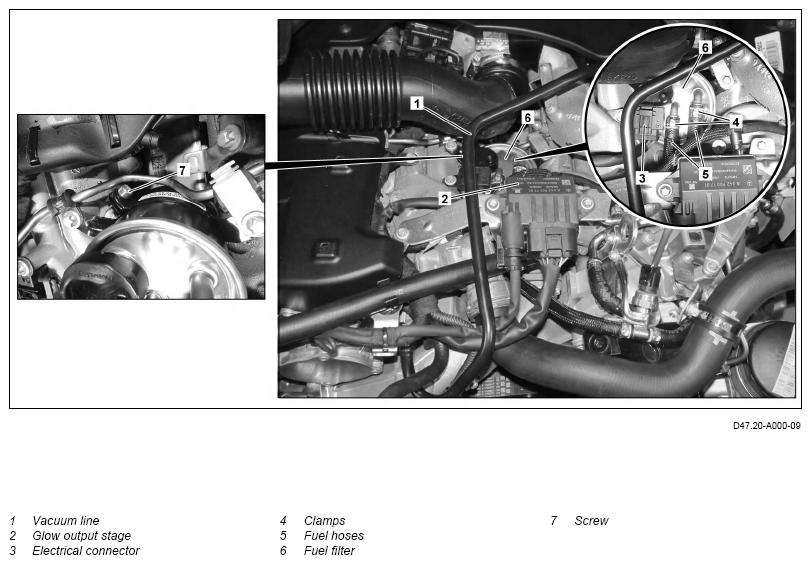

Fig 1 |
| 7 | Loosen the screw (7) by a few turns. | *BA47.20-N-1002-02M | |
| 8 | Remove fuel filter (6) in upward direction. | ||
| 9 | Install in the reverse order. | ||
| 10 | Switch ignition on and off several times in succession. | Do not start engine yet; leave ignition switchec on for at least 15 s. The fuel high-pressure pump may otherwise be damaged when the engine is started. |
|
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | AS00.00-Z-0005-01A | ||
| 11 | Check for leaktightness when engine is running. | Secure vehicle to prevent it from starting off b) itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
| Number | Designation | Engine 642 in model 907 | |
|---|---|---|---|
| BA47.20-N-1002-02M | Bolt, hose clamp cage to fuel filter | Nm | 5 |
