Cut Off Spring Bracket Of Rear Axle Spring - Ar61.25-D-6155-01TSB
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A |
Model 907.6/7/8 except code IR2 (Wheelbase 3250 mm)
The next steps are shown on the left side of the vehicle for model 907.633 and must be performed in a similar way in the event of damage on the right side of the vehicle.

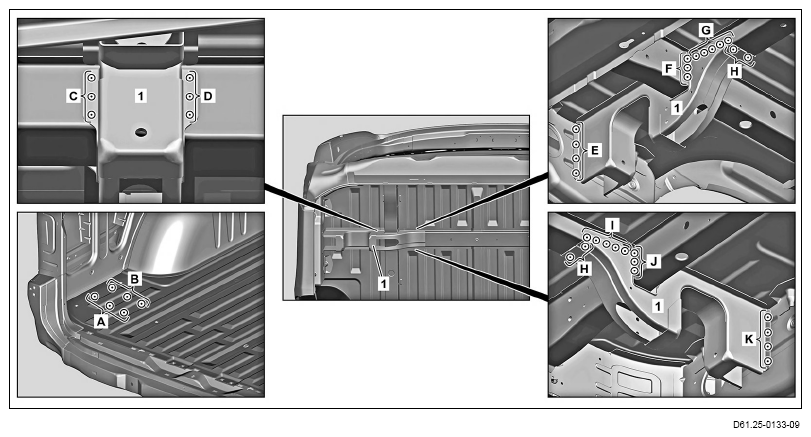

- Expose spot welds on spring bracket (1) (areas A, B, C, D, E, F, G, H, I, J, and K).
- Mill off spot welds (areas A, B, C, D, E, F, G, H, I, J, and K).
- Remove damaged spring bracket (1).

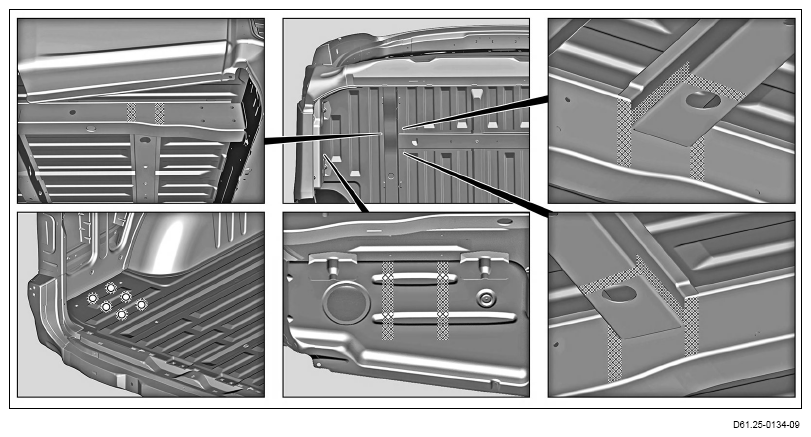

- Grind mating surfaces down to bare metal in cross-hatched areas and around the holes.
- Remove shavings and milling chips.
