Remove/Install Transfer Case - Ar28.10-D-0100TSL

Model 907

with code A4M (4MATIC)

except code ZG1 (Engageable all-wheel drive)

except code ZG3 (Engageable all-wheel drive with gear reduction)

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install

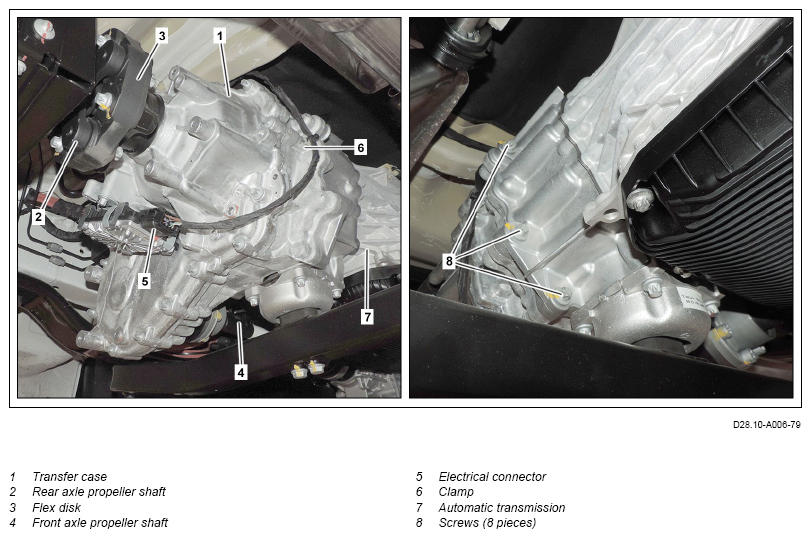

1	Remove rear axle propeller shaft (2) with flex disk (3).	Model 907 with code XM1 (Noise abatement measures) Installation: Only reinstall underfloor paneling after the oil level check.	AR41.10-D-0050TS
2	Remove front axle propeller shaft (4).		AR41.10-D-0070TSY
3	Release and disconnect electrical connector (5).
4	Release clamp (6) of electrical wiring harness on transfer case (1), guide electrical wiring harness to one side then fix in place.
5	Support transfer case (1) using major assembly support and mounting plate and secure with tensioning strap.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
6	Remove all screws (8) around circumference of transfer case (1).	Screw/bolt, transfer case to automatic transmission	*BA28.10-N-1006-01TSR
7	Remove transfer case (1).	: Grease drive shaft gearing. Anticorrosion grease 40 g/DB supply specification 6834.00	*BR00.45-Z-1006-06A
8	Install in the reverse order.
	Check
	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
9	Check oil level in transfer case (1), correct, if necessary.
	Automatic transmission fluids (ATF) (specification 236.12)		BB00.40-P-0236-12A
			AR28.10-D-0100-03TSX
		Assembly cleaner	*BR00.45-Z-1028-04A
		Drain screw to transmission housing	*BA28.40-N-1001-01E
		Filling screw to transmission housing	*BA28.40-N-1002-01E
		Hand pump	Fig 1

COMPLETE TRANSFER CASE

Number	Designation		Model 907 with code A4M (4MATIC)
BA28.10-N-1006-01TSR	Screw/bolt, transfer case to automatic transmission	Nm	47

TRANSFER CASE HOUSING

Number	Designation		Model 907 with code A4M (4MATIC) except code ZG1 (Engageable all-wheel drive) except code ZG3 (Engageable all-wheel drive with gear reduction)
BA28.40-N-1001-01E	Drain screw to transmission housing	Nm	14

TRANSFER CASE HOUSING

Number	Designation		Model 907 with code A4M (4MATIC) except code ZG1 (Engageable all-wheel drive) except code ZG3 (Engageable all-wheel drive with gear reduction)
BA28.40-N-1002-01E	Filling screw to transmission housing	Nm	14

Fig 1: Hand Pump (210 589 00 71 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1006-06A	Anticorrosion grease 40 g/DB supply specification 6834.00	A 001 989 37 51 10
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
