Remove/Install Exhaust System Exhaust Tailpipe - Ar49.10-D-7155TSR

Engine 642, 651 in model 907

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Caution	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
2	Remove underbody paneling.	If installed. Installation:  Install underfloor paneling only after the leak test.	AR61.30-D-1001TS

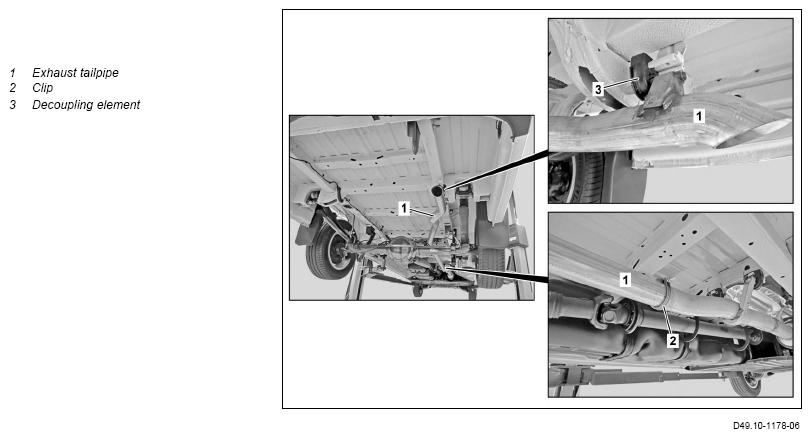

3	Loosen clamp (2).	: Check clamp (2) for damage and wear. Clamp, exhaust pipe to SCR catalytic converter  If clamp (2) is damaged or worn, ↓ Replace clamp (2).	*BA49.10-N-1002-02TS
4	Unhook decoupling element (3) from tailpipe (1).	Installation:  Check decoupling element (3) for damage and wear. If the decoupling element (3) is damaged or worn, ↓ replace decoupling element (3).
5	Remove tailpipe (1).	Have second person help.  Installation:  Remove combustion and corrosion residues from separating points with rotary wire brush. Remove combustion and corrosion residues from separating point on tailpipe (1) only when reusing the tailpipe (1). : Coat contact surface of the tailpipe (1) to the SCR catalytic converter with heat-resistant lubricating paste. Ensure unstressed and correct installation position or unobstructed movement of the tailpipe (1). Commercially available devices/tools  Rotary wire brush
		Paste, hot lubrication 1 kg, DBL 6879.20	*BR00.45-Z-1005-06A
6	Install in the reverse order
	Check
7	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run and check exhaust system in the area of the clamp (2) for leak tightness.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A

EXHAUST SYSTEM

Number	Designation		Engine 642, 651 in model 907
BA49.10-N-1002-02TS	Clamp, exhaust pipe to SCR catalytic converter	Nm	23

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DBL 6879.20	A 000 989 76 51
