Remove/Install Overheating/Flame Temperature Sensor - Ar83.70-D-5745TSR

Model 907.6/7

with code H11 (Auxiliary hot-air heater)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

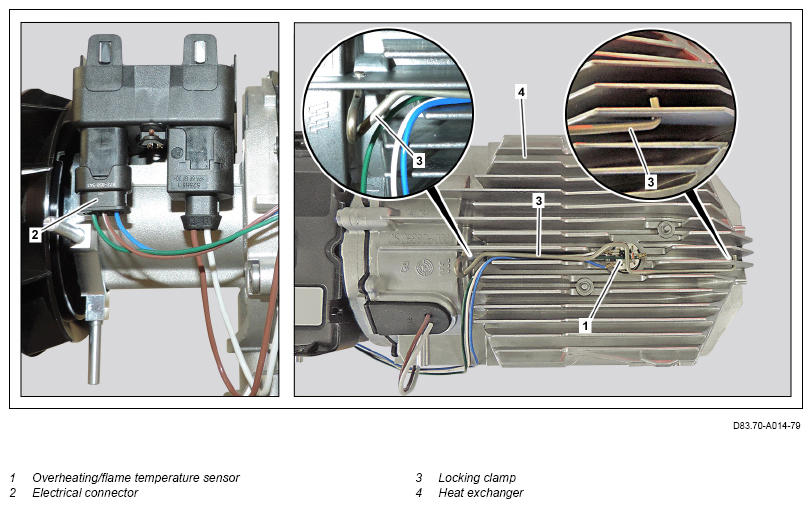

1	Remove heater from housing.		AR83.70-D-5399TSR
2	Release and disconnect electrical connector (2).
3	Release locking clamp (3) at heat exchanger (4) and remove heat exchanger (4).
4	Expose electrical wiring harness of overheating/flame temperature sensor (1) at heat exchanger (4) and remove overheating/flame temperature sensor (1).	Installation:  Ensure that overheating/flame temperature sensor (1) lies flat against heat exchanger (4). Otherwise, the heater will malfunction, : Ensure that electrical wiring harness of overheating/flame temperature sensor (1) at heat exchanger (4) is routed correctly.
5	Install in the reverse order.
