Remove/Install Condenser - Ar83.30-D-6540TS
Model 907 with engine 642, 651
MODIFICATION NOTES
| 10.05.2018 | Method extended. | Operation step 3. |
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0006-01A | |
| Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-N-0005-01A | ||
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Notes on handling refrigerant R134a | AH83.30-N-0003-01A | ||
| Remove/install | |||
| 1 | Remove radiator. | Model 907 with engine 651 | AR20.20-D-3865TS |
| Model 907 with engine 642 | AR20.20-D-3865TSV | ||

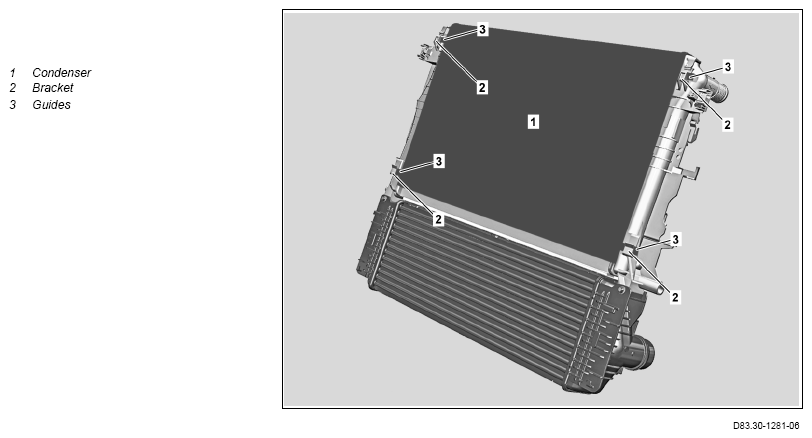

| 2 | Remove condenser (1). | If the condenser (1) is reused. ↓ Replace the fluid reservoir. Remove/install fluid reservoir |
AR83.30-D-6520TSR |
| 3 | Transfer pressure sensor for refrigerant. | If the condenser (1) is replaced. | AR83.30-D-5445TSF |
| 4 | Install in the reverse order |
