Removal and Installation

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.

Turn the ignition switch to the OFF position.

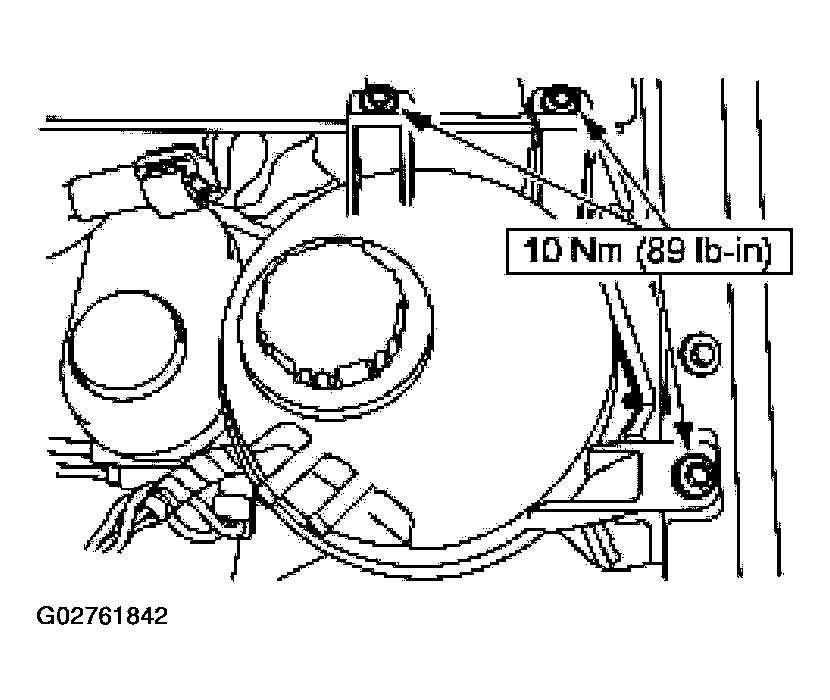

Remove the bolts and position the degas bottle aside.

Fig 1: Removing Bolts And Position Degas Bottle Aside
Courtesy of FORD MOTOR CO.

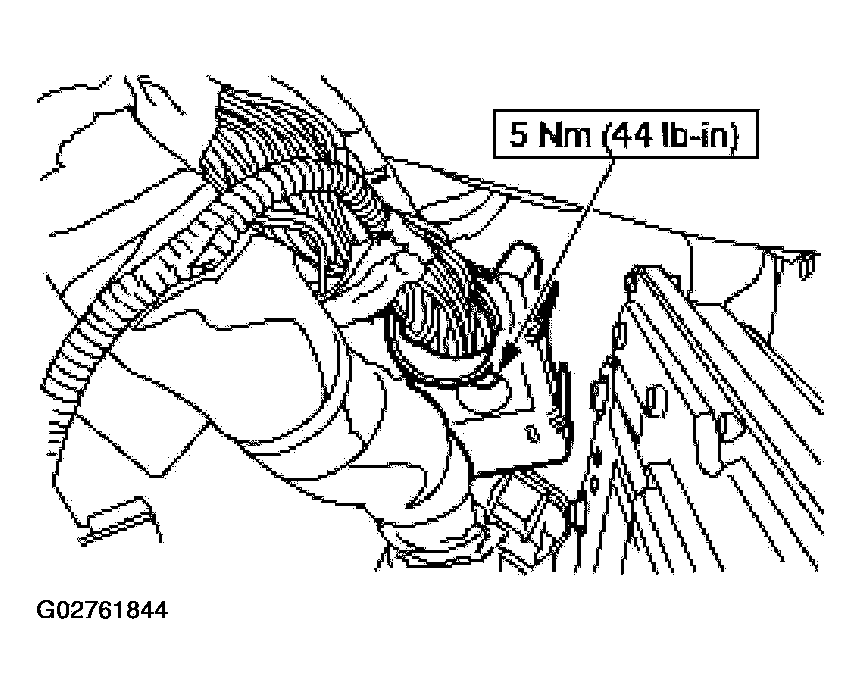

Disconnect the fuel injector control module (FICM) electrical connectors. Position the wiring harness aside.

Fig 2: Disconnecting Fuel Injector Control Module (FICM) Electrical Connectors
Courtesy of FORD MOTOR CO.

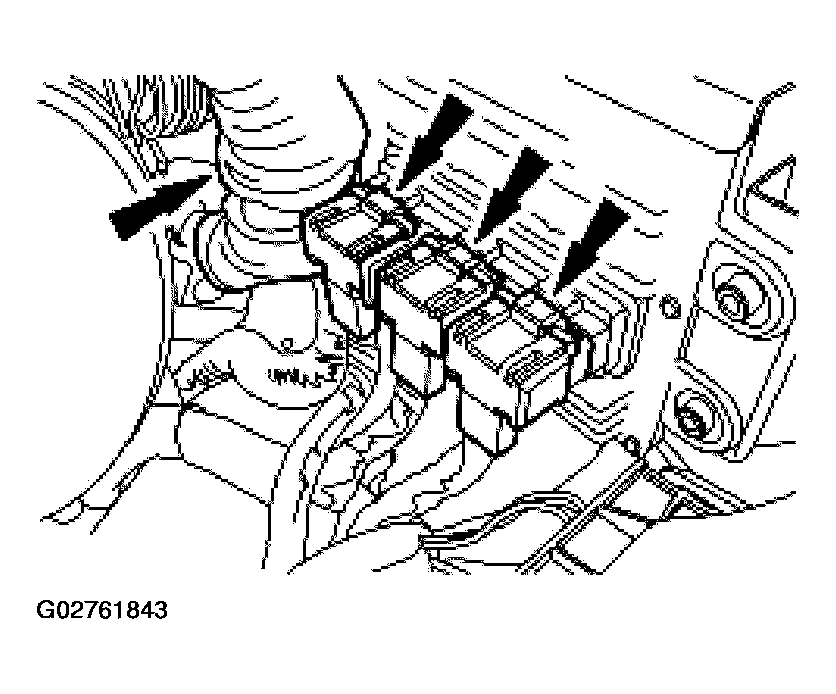

Disconnect the bulkhead connector and position aside.

Fig 3: Disconnecting Bulkhead Connector And Position Aside
Courtesy of FORD MOTOR CO.

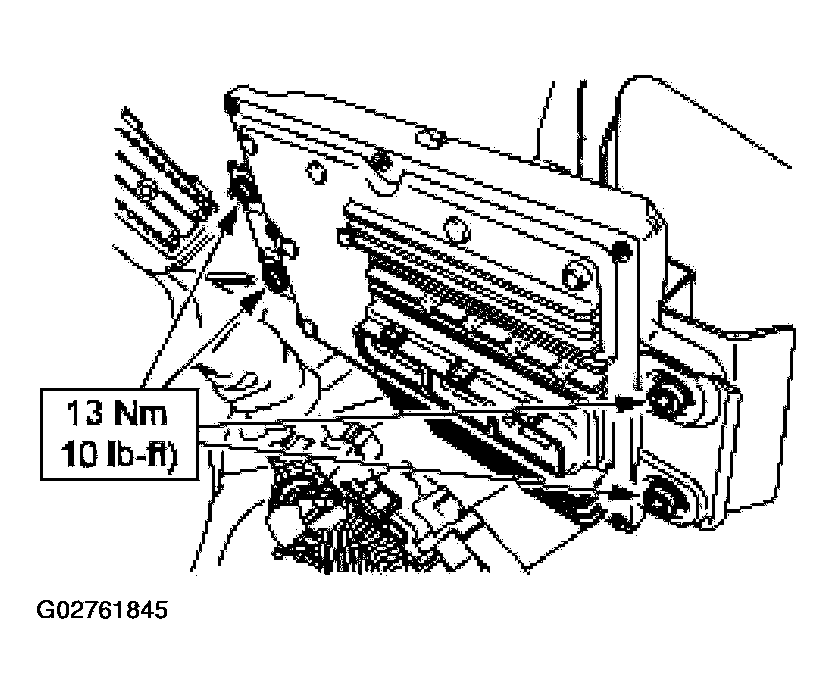

Remove the bolts and the fuel injector control module (FICM).

Fig 4: Removing Bolts And Fuel Injector Control Module (FICM)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
