Rear View Mirror C911
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

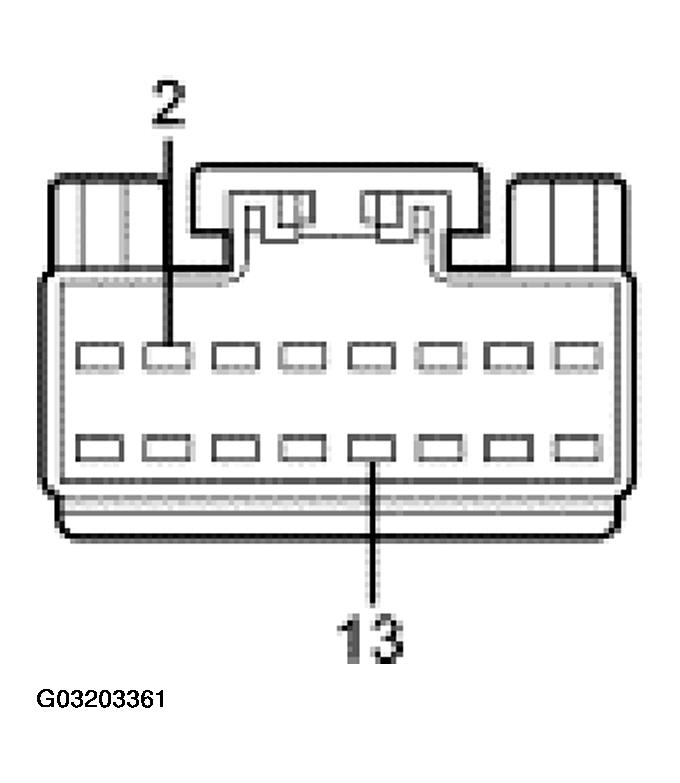

Courtesy of FORD MOTOR CO. C911 CONNECTOR REFERENCE CHART
| Pin Number(s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 2 |
31-AD15(BK/OG) ground |
0 voltage, less than 5 ohms to ground. |
| 13 |
75-AD15 (YE/BU) switched B+ voltage feed |
Greater than 10 volts with key ON or ACC. |
