Rear Lamp Assembly: Notes

WARNING: This page is about a different car, the 2009 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

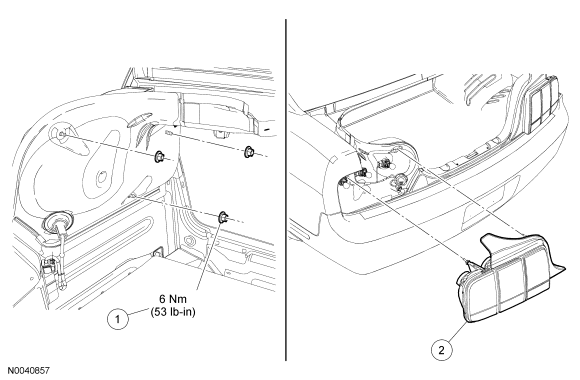

Fig 1: Exploded View Of Rear Lamp Assembly With Torque Specification
GF0016157Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N621926-S424 Rear lamp mounting nuts (3 required)
2 13B404/13B405 Rear lamp assembly (RH/LH)
