Tightening Procedure For High-Pressure Pump Shielding - Ar07.02-S-0815-01EG
Model 907 with engine 274
HIGH PRESSURE PUMP
| Number |
Designation |
Engine 274 in model 907 |
| BA07.02-N-1002-01F |
Bolt for high-pressure pump shielding |
Nm |
20 |

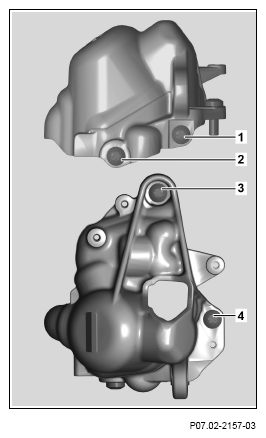

- Tighten screws (1, 2, 3, 4) in the numerical sequence
High Pressure Pump Shield Tightening Sequence
