Remove/Install Throttle Valve Actuator - Ar07.70-D-0005TSC
Engine 274 in model 907
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove charge air hose downstream of charge air cooler. | AR09.41-D-8625TSC | |

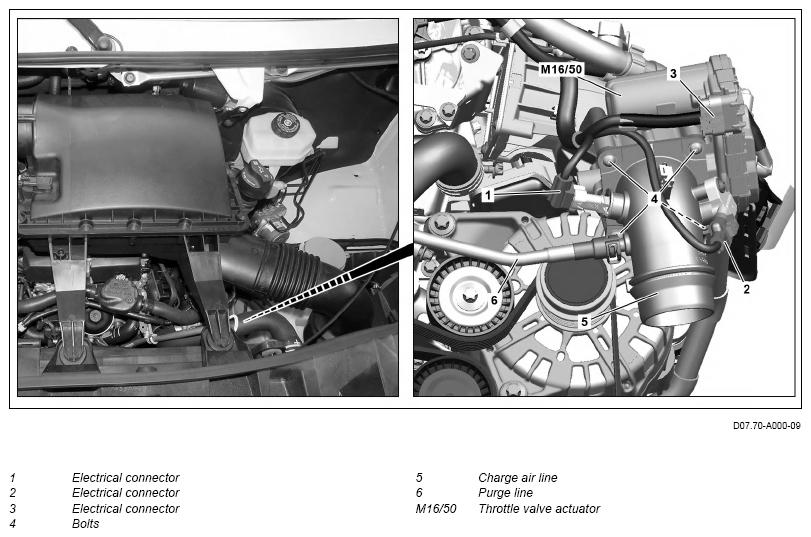

| 2 | Release and disconnect electrical connectors (1, 2, 3). | ||
| 3 | Release bracket of purge line (6), release and disconnect purge line (6) at throttle valve actuator (M16/50). | ||
| 4 | Seal exposed connections using suitable plugs. | Fig 1 | |
| 5 | Unscrew screws (4) and remove throttle valve actuator (M16/50) with charge air line (5). | ||
| *BA09.41-N-1001-01V | |||
| 6 | Install in the reverse order | ||
| Concluding tasks | |||
| 7 | Perform initialization of throttle valve actuator (M16/50) with vehicle diagnosis system and delete existing faults. | When replacing throttle valve actuator (M16/50). | |
| AD00.00-D-2000-06TS | |||
| Risk of burn injuries,
suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. |
Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Conduct engine test run while checking for proper operation of the engine. |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA09.41-N-1001-01V | Bolt, throttle valve actuator to charge air distributor | Nm | 6 |
