Remove/Install Front Axle Half - Ar33.10-D-0200TSR

Model 907

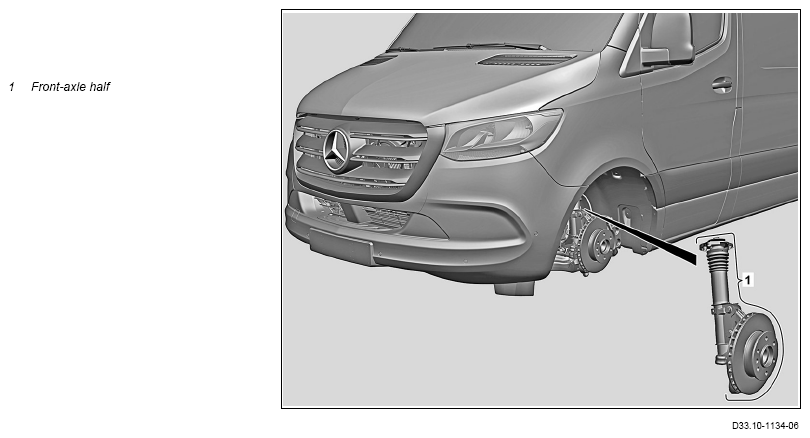

Shown on model 907.63, left side of vehicle, front wheel removed

G13787040

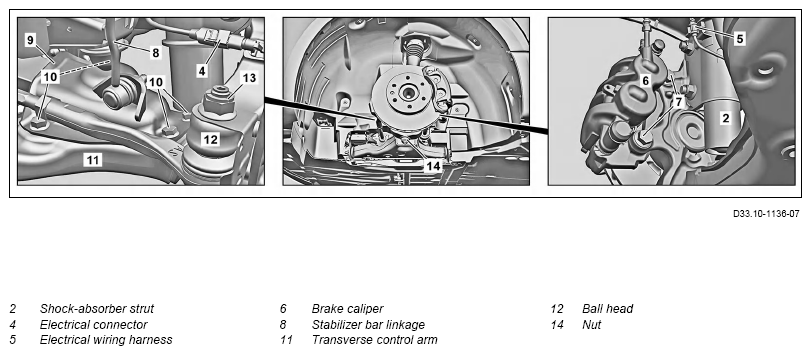

Shown on model 907.63, left side of vehicle, front wheel removed

G13787041

Shown on model 907.63, left side of vehicle, front wheel removed

G13787042
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury  caused by pinching or crushing when working on springs or spring bodies that are under tension Use only approved tensioning devices; additionally screen off hazardous area if necessary. Check special tools for damage and proper operation (visual inspection). Wear protective gloves. AS00.00-Z-0001-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on carrying out repair work in the vehicle interior   AH68.00-N-0001-01S
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1.1 Remove floor covering in driver's side footwell. If the front-axle half (1) is removed on the driver's side. AR68.80-D-0006TSR
1.2 Remove vehicle tool kit carrier plate. If the front-axle half (1) is removed on the front passenger side. AR68.30-D-5021TS
2 Remove brake caliper (6). NOTES
Do not tension or kink brake hose. Otherwise the brake hose will be damaged.
IMPORTANT Do not detach brake hose. Remove brake caliper (6) and tie up at suitable position.
AR42.10-D-0070TS
3 Position electrical wiring harness (5) outside working area. IMPORTANT To do so, disconnect electrical connector (4) and unclip electrical wiring harness (5) from shock-absorber strut (2).
4 Remove torsion bar linkage (8) from transverse control arm (11).   AR32.35-D-3330TS
5 Remove ball head (12) from steering knuckle.   AR46.40-D-7242TS
6 Remove steering knuckle from transverse control arm (11).   AR33.20-D-3505TSR
7 Remove front-axle half (1). LU To do so, remove bolts (3). IMPORTANT Helper required.
    TORQUE SPECIFICATION Bolt, support bearing to body *BA32.25-N-1002-02TSR
INSPECT Check
8 Check shock-absorber strut (2). INSTALLATION NOTES Installation:
The decoupling element at the pivot bearing must be replaced.
Otherwise, noise will be generated during driving and during steering movements.
AR32.25-D-0121A
9 Install in the reverse order
10 Perform chassis alignment.   AR40.20-D-0200TS
TORQUE SPECIFICATION FRONT AXLE DAMPER STRUT

Number Designation Model 907
BA32.25-N-1002-02TSR Bolt, support bearing to body Nm 30
