Remove/Install Bellows - Ar46.40-D-9998TS

Model 907

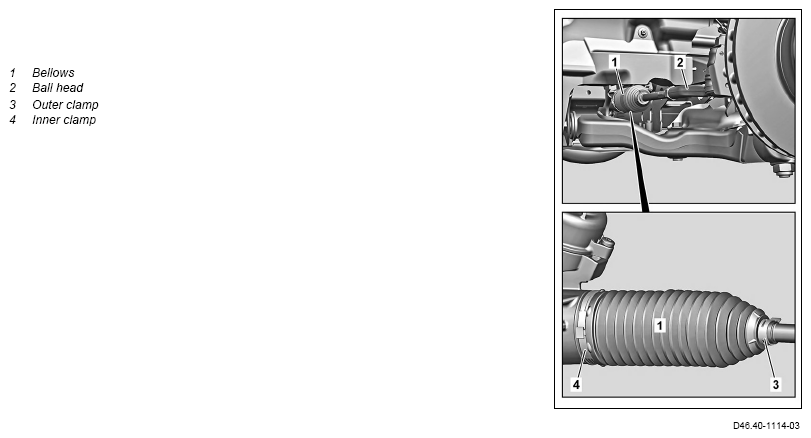

Shown on model 907, left side of vehicle

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system		AH00.00-Z-0300-01A
	Remove/install
1	Remove lower engine compartment lining.	Model 907 with code XM1 (Noise reduction)	AR61.20-D-1105TS
2	Remove respective ball head (2).		AR46.40-D-7242TS
3	Remove counternut from tie rod.
4	Remove inner clamp (4).	Commercially available devices/tools  Assembly pliers for clamps Install new inner clamp (4).
5	Remove outer clamp (3).	Hose clamp pliers	Fig 1
6	Remove boot (1).	Clean contact surfaces of boot (1) on tie rod and at steering gear and coat lightly with lubricant. Check boot (1) for damage.
		Lubricant, rubber assembly 1 | If corresponding findings are present, ↓ Replace boot (1).	*BR00.45-Z-1010-06A
	Check
	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
7	Check toothed rack for corrosion and the steering gear for leak tightness. Notes on evaluating leakages	If corresponding findings are present, ↓ Replace steering gear.	AH00.00-N-0011-01A
		Model 907 with code ZG1 (Engageable all-wheel drive) Model 907 with code ZG3 (Engageable all-wheel drive with gear reduction)	AR46.20-D-0500TSX
		Model 907 except code ZG1 (Engageable all-wheel drive) except code ZG3 (Engageable all-wheel drive with gear reduction)	AR46.20-D-0500TS
8	Check axial joint of tie rod for play.	If corresponding findings are present, ↓ Replace tie rod with axial joint.
			AR46.40-D-0202TS
9	Install in the reverse order.

Fig 1: Hose Clamp Pliers (454 589 00 37 00)
