Remove/Install Camshaft Hall Sensor - AR15.10-P-2000MRA
Engine 274.9 in model 205
Engine 274.9 in model 253
Shown on Engine 274.910 in MODEL 205.040

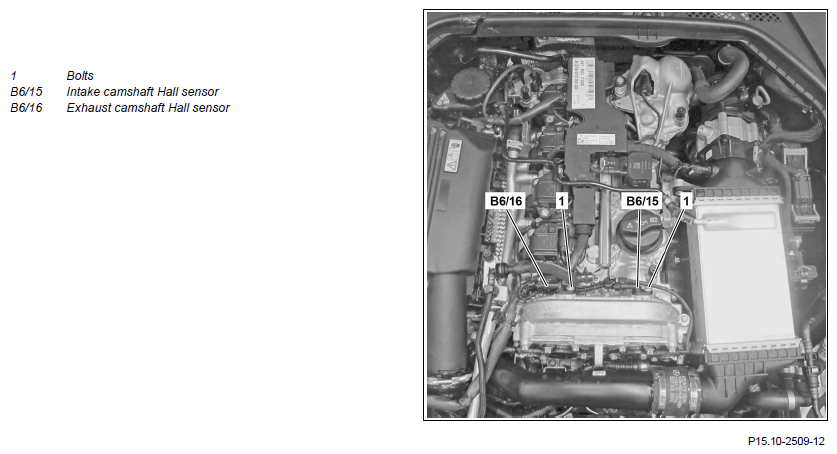

Fig 1: Intake/Exhaust Camshaft Hall Sensor Components Location - Engine 274.9 In Model 253 (Shown On Engine 274.910 In Model 205.040)
| Risk of injury to skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove upper Engine cover | ||
| 2 | Release and disconnect electrical connection of intake or exhaust camshaft Hall sensor (B6/15 or B6/16) | ||
| 3 | Remove respective screw/bolt (1) | *BA15.10-P-1002-03I | |
| 4 | Remove intake or exhaust camshaft Hall sensor (B6/15 or B6/16) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 |
Read out and erase fault memory | AD00.00-P-2000-04B | |
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform an Engine test run and check Engine for proper operation and leaktightness | ||
| 8 | Install upper Engine cover |
POSITION SENSOR
| Number | Designation | Engine 274 | |
|---|---|---|---|
| BA15.10-P-1002-03I | Screw/bolt, camshaft position sensor to cylinder head cover | Nm | 8 |
