Remove/Install Starter - AR15.30-P-7100MND

Engine 276.8 In Model 213, 238

except code M005 (Vehicles with 4MATIC/all-wheel drive)

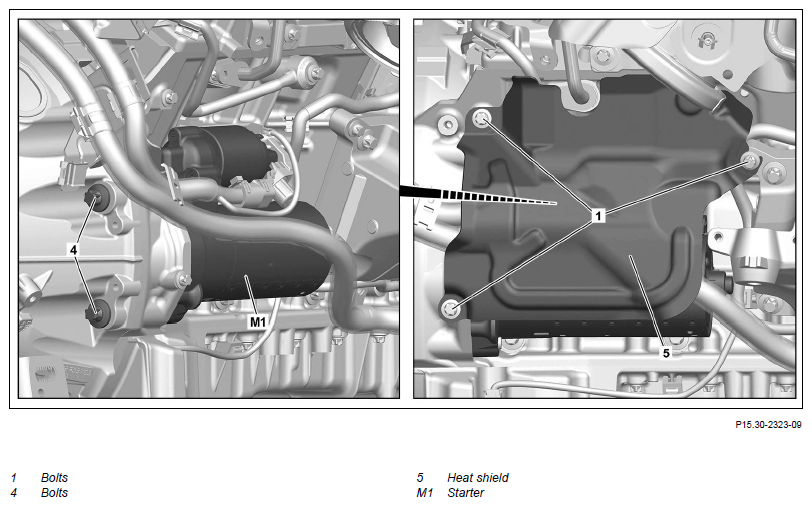

Fig 1: Starter Components Location - Engine 276.8 In Model 238 Except Code M005

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Disconnect ground line from battery	Engine 276.8 in model 238 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR54.10-P-0003LWO
Notice	Notes on battery		AH54.10-P-0001-01A
		Engine 276.8 in model 213 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR54.10-P-0003LW
2	Remove right catalytic converter		AR49.10-P-5503MND
3	Unscrew screws/bolts (1) from heat shield (5)	Bolt/nut for shield attachment	*BA09.40-P-1011-01W
4	Remove heat shield (5) downwards
5	Detach wiring harness at starter (M1)		AR15.30-P-7100-03MND
		Nut, connection for terminal designation 30	*BA15.30-P-1001-01J
		Nut, connection for terminal designation 50	*BA15.30-P-1002-01J
6	Unscrew screws/bolts (4) and remove starter (M1) downwards	Bolt, starter to crankcase/transmission	*BA15.30-P-1003-01J
7	Remove the charge air cooler and place with attached coolant line to one side	When replacing the starter (M1).
			AR09.41-P-6817MND
8	Turn engine at the center bolt of crankshaft in direction of engine rotation and check the starter ring gear on clutch plate for wear and damage	Socket wrench bit If wear or damage present ↓ Replace drive plate.	Fig 2
			AR03.30-P-8003MND
9	Install in the reverse order
	Risk of burn injuries,  suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and Risk of poisoning  caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Perform an engine test run, checking for proper operation of starter (M1)

Fig 2: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
