Remove/Install Regulator For Belt Driven Alternator - AR15.40-P-5760MND

Engine 276.8 In Model 213, 238

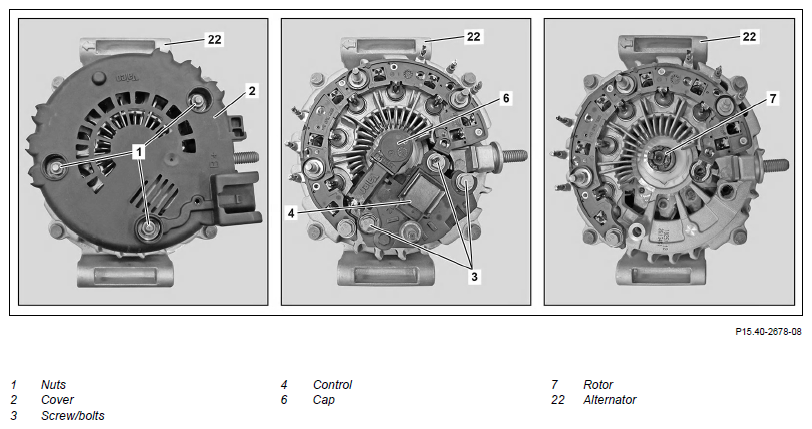

Fig 1: Regulator For Belt Driven Alternator Components Location - Engine 276.8 In Model 238

Courtesy of MERCEDES-BENZ USA

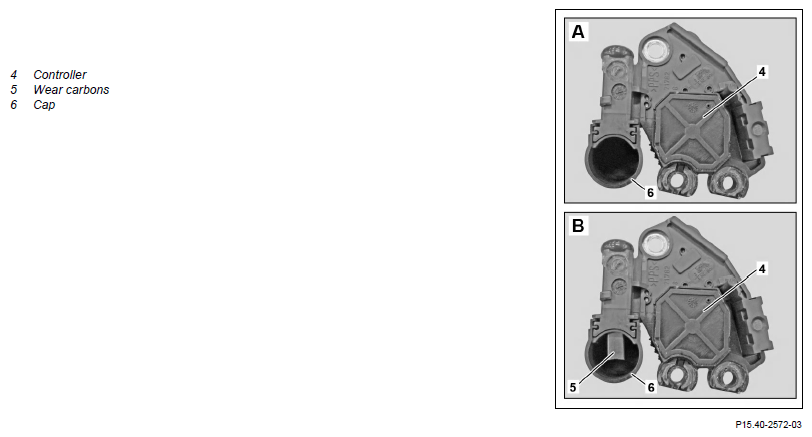

Shown: control with locked carbon brushes (A) and with extended carbon brushes (B)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove
1	Remove alternator (22)		AR15.40-P-5032MND
2	Unscrew nuts (1) and remove cover (2)
3	Remove screws/bolts (3) and remove control (4)
	Install
4	Position new control (4) and tighten down. screw/bolts (3)	Bolt, regulator to alternator	*BA15.40-P-1005-01F
5	Press on cap (6) until the carbon brushes (5) audibly to the rotor (7) of the alternator (22)	The carbon brushes (5) of the new control (4) are locked by means of the protective cap (6) upon delivery.
6	Position cover (2) and tighten nuts (1)	Bolt/nut, cover to alternator	*BA15.40-P-1008-01F
7	Install alternator (22)		AR15.40-P-5032MND
