Perform Basic Setting For Rear Side Window - AR67.30-P-4201-01LWR

Model 205.4

Model 238.4

MODIFICATION NOTES

29.04.2021	Front door window to rear side window	Model 238.4	BE60.00-P-1016-01HA
29.04.2021	Front door window to rear side window	Model 205.4	BE60.00-P-1029-01BB
07.06.2021	Method adapted.	Operation steps 11 to 14

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.4
BE60.00-P-1016-01HA	Front door window to rear side window	Dimension "J1"	mm	9 (±0, 5)
BE60.00-P-1016-01HA	Front door window to rear side window	For picture, see		AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 238.4
BE60.00-P-1023-01HA	Front door window to rear side window (rear side window lowered)	Dimension "J2"	mm	2 (±1)
BE60.00-P-1023-01HA		For picture, see		AR60.00-P-0700-01LWO

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1029-01BB	Front door window to rear side window	Dimension "J1"	mm	13, 5 (±0, 5)
BE60.00-P-1029-01BB	Front door window to rear side window	For picture, see		AR60.00-P-0700-01LW

CHECK VALUES FOR GAP DIMENSIONS

Number	Designation			Model 205.4
BE60.00-P-1036-01BB	Front door window to rear side window (rear side window lowered)	Dimension "J2"	mm	2 (±1)
BE60.00-P-1036-01BB		For picture, see		AR60.00-P-0700-01LW

CHECK VALUES FOR SIDE WINDOWS

Number	Designation			Model 205.4	Model 238.4
BE67.30-P-1007-03B	Protrusion of front side window to rear side window	Dimension "F"	mm	-1 (± 0, 5)	-1 (± 0, 5)

SIDE WINDOW (S)

Number	Designation		Model 205.3/4	Model 238
BA67.30-P-1001-01B	Bolt, side window to window lifter	Nm	12	12

SIDE WINDOW (S)

Number	Designation		Model 205.3/4	Model 238
BA67.30-P-1002-01B	Bolt/nut, power window lifter of side windows to inner panel	Nm	13	13

Fig 1: Identifying Socket Wrench (209 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Adjustment is realized with the front door closed and fully raised front side window.

Courtesy of MERCEDES-BENZ USA

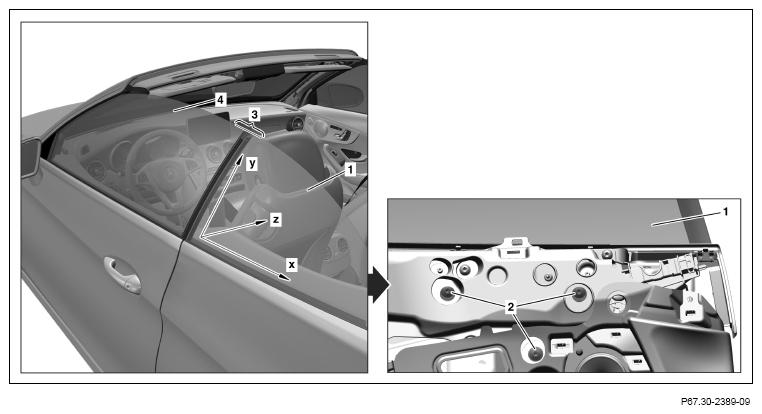

Adjustment in x direction and z direction

Fully open soft top.
Move rear side window (1) to upper end position.
Loosen bolts (2) until the rear side window (1) can be moved.
Adjust rear side window (1) from outside using a cup suction tool in x direction and z direction Model 205.4 Model 238.4
Adjustment in x-direction:

Align rear side window (1) according to dimension "J1" in relation to front door side window (4).

Adjustment in z direction:

The upper transition (3) between the front door side window (4) and rear side window (1) must be flush.
tighten the screws (2).
Completely lower side window (1) and then move to upper end position.
Open and then close driver door or passenger door.
Check adjustment in x direction and z direction again.
If there is a problem:

↓

repeat adjustment procedure.

Adjustment in y direction
Open driver door or passenger door.

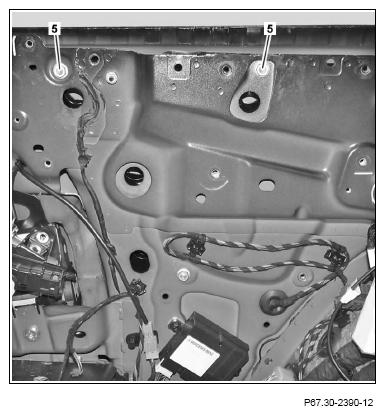

Loosen nuts (5).
Adjust inclination of rear side window (1) by turning bolts with socket wrench.
When adjusting the front bolt, make the same adjustment to the rear bolt.

Otherwise increased seal wear can occur.

One complete turn of the bolt results in approx. 1 mm adjustment range in the y direction.
Tighten nuts (5).
Close driver's door/passenger door.
Lower rear side window approx. 5 cm and check adjustment in y direction. Model 238.4 Model 205.4
If there is a problem:

↓

Completely close rear side window and continue with operation step 9.
Completely lower side window and then move to upper end position.
Close soft top.
Re-check adjustment in the y direction with completely closed rear side window.
If there is a problem:

↓

repeat adjustment procedure.
