Fuel Tank Diagnostic Module, Basic Function - GF47.40-P-2000A
Engine 139, 176, 177, 254, 256, 260, 264, 274, 279, 282
with code 460 (Canada version)
with code 494 (USA version)
with code 830 (China version)
with code 835 (South Korea version)
with code 945 (China stage 6B exhaust gas cleaning)

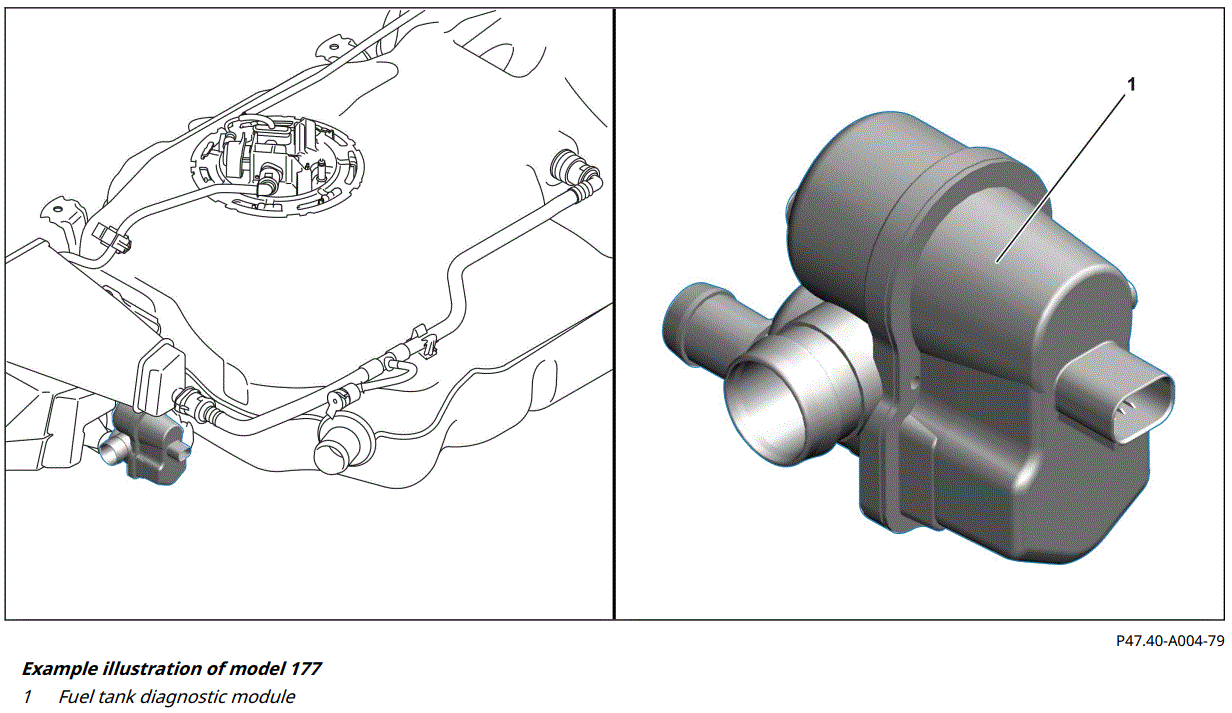

Example illustration of model 177
Overview
This document contains information on:
- General
- Function
General
The fuel tank diagnostic module (1) checks the fuel tank at regular intervals for leaks.
Function
The fuel tank diagnostic module (1) comprises a plastic housing with two hose connections in which the following components are located:
- Fuel tank diagnostic module pump
- Fuel tank diagnostic module heating element
- Fuel tank diagnostic module solenoid valve
- Reference leak point
The leak tightness of the fuel tank is checked by the combustion engine control unit by comparing the power consumptions during the generation of an overpressure in the fuel tank without and with the reference leak.
The combustion engine control unit detects the size of the leak by the time that the fuel tank diagnostic module pump has to work until a reference current is achieved.
Leaks from a size of Ø 0.5 mm are detected.
| Component descriptions | |||
| Fuel tank diagnostic module, component description | Engine 176, 256, 279 in model 223 | GF47.31-P-2000A | |
| Engine 254 in model 206 | GF47.31-P-2000C | ||
| Engine 139, 177 in model 232 | GF47.31-P-2000F | ||
| Engine 254 in model 254 | GF47.31-P-2000H | ||
| Engine 254 in model 214 | GF47.31-P-2000K | ||
| Engine 139, 260, 282 in model 118, 177, 247 as of model year 2023 | GF47.31-P-2000L | ||
| Engine 176, 177, 256, 264 in model 167 as of model year 2023 | GF47.31-P-2000M | ||
| Engine 139, 177 in model 192 | GF47.31-P-2000R | ||
| Engine 254 in model 236 | GF47.31-P-2000S |
