Control Unit Of Trunk Lid/Liftgate Control, Basic Function - GF80.45-P-9890A
Model all (CAR)
with code 881 (Remote boot-lid closing)
Model all (CAR)
with code 890 (Automatic rear-end door)
Sample illustration of vehicle with remote trunk closing
Overview
This document contains information on:
- General
- Function
General
Vehicles with remote trunk closing

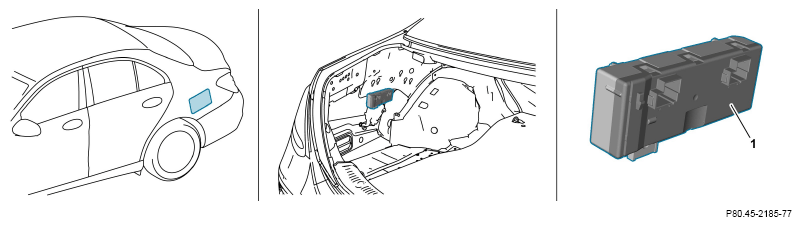

The trunk lid/tailgate control unit (1) is located on the left in the trunk behind the trunk side trim.
Vehicles with EASY-PACK tailgate
The trunk lid/tailgate control unit (1) can be positioned at different locations in the vehicle depending on the vehicle model.
Function
The trunk lid/tailgate control unit (1) controls the movement of the trunk lid or tailgate.
The trunk lid/tailgate control unit (1) is connected to the network architecture of the vehicle.
To control the movement of the trunk lid or the tailgate, the trunk lid/tailgate control unit (1) processes the following information:
- Opening/closing requests of trunk lid or tailgate
- Terminal status of terminal 15
- Vehicle speed
- Opening angle limiter status
During the movement of the trunk lid or tailgate, the trunk lid/tailgate control unit (1) actuates the trunk lid/tailgate control electric motor. The trunk lid/liftgate control warning buzzer is also actuated in vehicles with EASY-PACK liftgate or with remote trunk closing and HANDS-FREE ACCESS. The trunk lid/tailgate control unit (1) derives the movement and/or the position of the trunk lid or the tailgate from the signals of the trunk lid/tailgate control Hall sensor.
| Detailed information | |||
| Control unit for trunk lid/liftgate control, detailed information | Model 167 with code 890 (Automatic rear-end door) |
GF80.45-P-0002A | |
| Model 247 with code 890 (Automatic rear-end door) |
GF80.45-P-0002B | ||
| Model 293 with code 890 (Automatic rear-end door) |
GF80.45-P-0002C | ||
| Model 118 with code 890 (Automatic rear-end door) |
GF80.45-P-0002D | ||
| Component descriptions | |||
| Trunk lid control unit, component description | Model 223 | GF80.20-P-6050A | |
| Model 243 | GF80.20-P-6050B | ||
| Model 206 | GF80.20-P-6050C | ||
| Model 297 | GF80.20-P-6050D | ||
| Model 295 | GF80.20-P-6050E | ||
| Model 232 | GF80.20-P-6050F | ||
| Model 296 | GF80.20-P-6050G | ||
| Model 254 | GF80.20-P-6050H | ||
| Trunk lid/liftgate control control unit, component description | Model 214 | GF80.20-P-6092K | |
| Model 118 as of model year 2023 Model 177, 247 as of model year 2022 | GF80.20-P-6092L | ||
| Model 167 as of model year 2023 | GF80.20-P-6092M | ||
| Model 294 | GF80.20-P-6092N | ||
| Model 192 | GF80.20-P-6092R |
