Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97FBR
Engine 264.9 in Model 205
as of model year 2019
Vehicle plug
| Code: | Designation: | Position: |
|---|---|---|

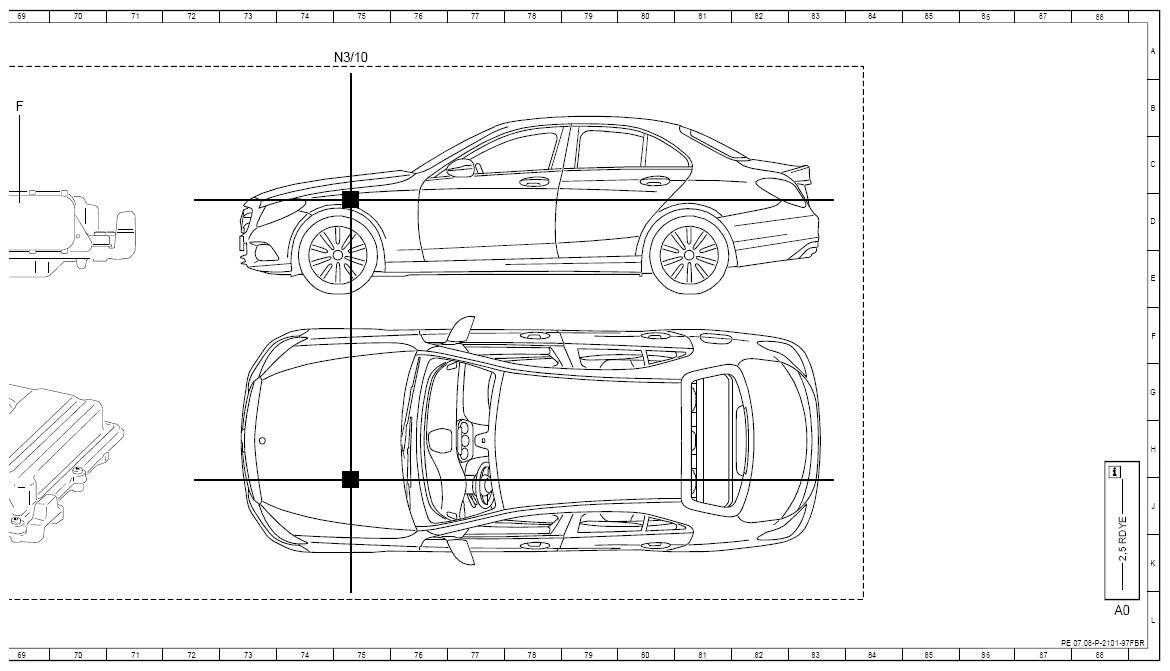

| A0 | Use of wiring diagrams | 88L |
| A101 | Fuel tank diagnostic module | 29L |

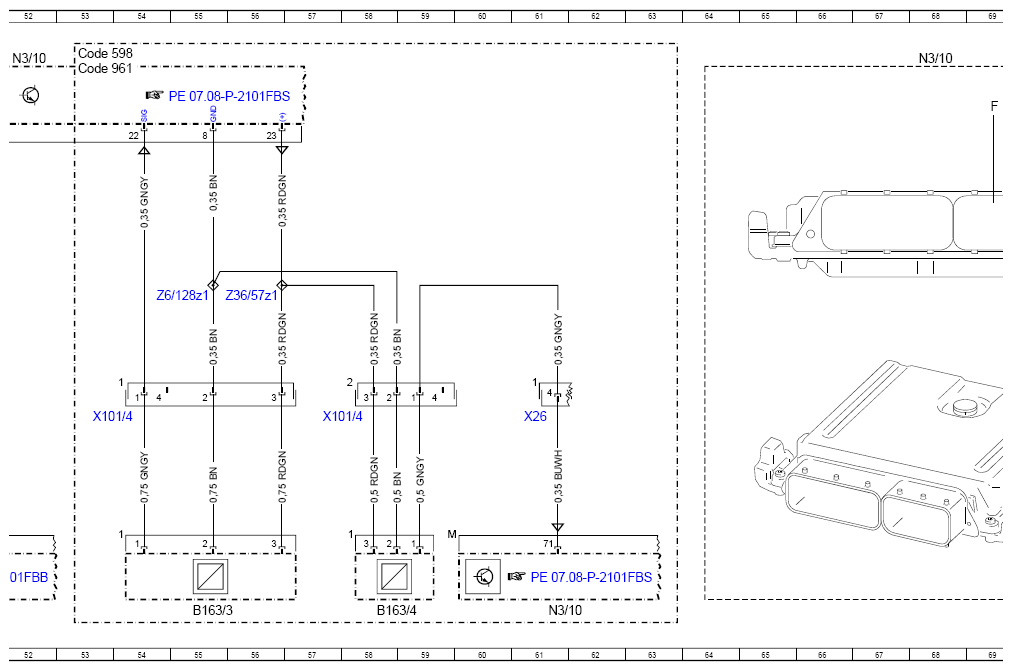

| B163/3 | Gasoline particulate filter differential pressure sensor | 55L |
| B163/4 | Temperature sensor upstream of gasoline particulate filter | 58L |
| B4/48 | Fuel tank pressure sensor 1 | 33L |
| B4/49 | Fuel tank pressure sensor 2 | 36L |
| CAN C | Engine CAN | 42K |
| CAN C1 | Drive train CAN | 39K |
| Code 460 | Canada version | 27F |
| Code 494 | USA version | 27F |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 53A |
| Code 835 | Additional parts for South Korea vehicles | 27F |
| Code 945 | China Stage 6 exhaust treatment | 27G |
| Code 945 | China Stage 6 exhaust treatment | 31D |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 53A |
| Code B01 | 48V Technology | 9A |
| Code FV | LONG SEDAN | 31D |
| Code L | LEFT-HAND DRIVE | 5E |
| Code R | RIGHT-HAND DRIVE | 5F |
| F1/3 | Passenger-side A-piIlar fuse box | 7L |
| F1/3f315 | Fuse 315 | 5L |
| K40/8 | Engine fuse and relay module | 14L |
| K40/8 | Engine fuse and relay module | 19L |
| K40/8f101 | Fuse 101 | 18L |
| K40/8f103 | Fuse 103 | 16L |
| K40/8f125 | Fuse 125 | 13L |
| K40/8kH | Starter circuit 50 relay | 10L |
| K40/8kN | Circuit 87M relay | 14L |
| N118 | Fuel pump control unit | 51L |
| N127 | Drivetrain control unit | 42L |
| N2/10 | Supplemental restraint system control unit | 47L |

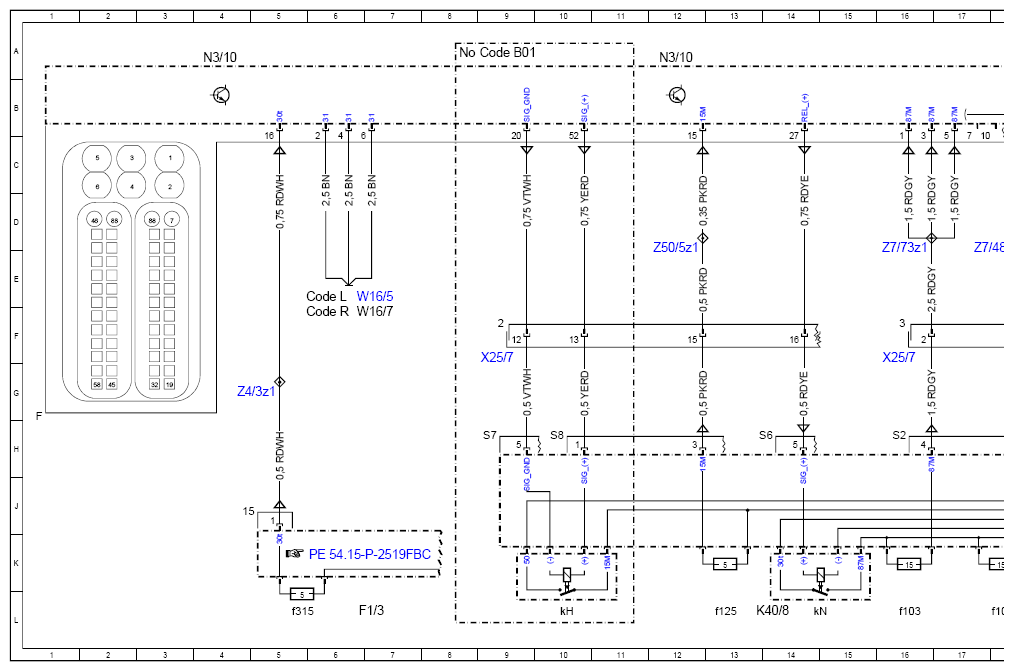

| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 61L |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 75A |
| W16/5 | Left major assembly compartment electronics ground point | 6E |
| W16/7 | Right major assembly compartment electronics ground point | 6F |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 53H |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 58H |
| X25/4 | Fuel tank electrical connector | 32H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 9F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 16F |
| X26 | Interior and Engine wiring harness electrical connector | 61H |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 39L |

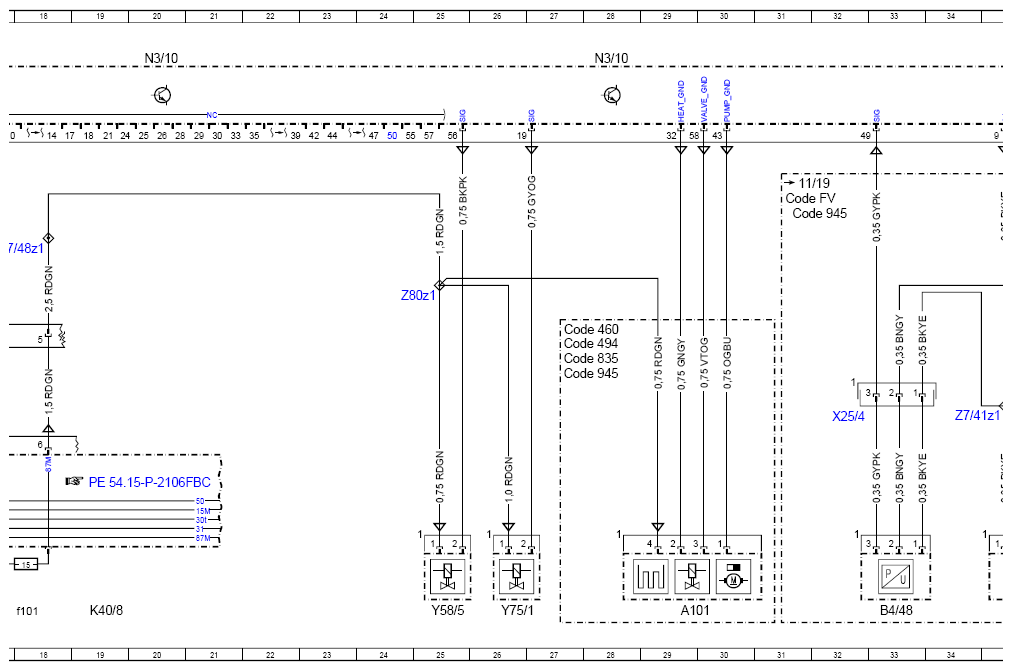

| Y58/5 | Fuel tank shutoff valve | 25L |
| Y75/1 | Fuel vapor shutoff valve | 26L |
| Z36/57z1 | Gasoline particulate filter sensors supply end sleeve | 56E |
| Z4/3z1 | Tml. 30 connector sleeve | 5G |
| Z50/5z1 | Tml. 15 connector sleeve | 12E |
| Z6/128z1 | Gasoline particulate filter sensors ground line end sleeve | 55E |
| Z6/26z1 | Sensor voltage supply connector sleeve | 36G |
| Z7/41z1 | Sensor voltage connector sleeve | 34G |
| Z7/48z1 | Circuit 87/2 connector sleeve | 18E |
| Z7/73z1 | Circuit 87/4 connector sleeve | 16E |
| Z80z1 | Cross section reduction connector sleeve | 25E |
