Ignition Coils, Component Description - GF15.10-P-2100A

Model 223 with engine 176

Model 223 with engine 177

Model 223 with engine 256

Model 223 with engine 279

Courtesy of MERCEDES-BENZ USA

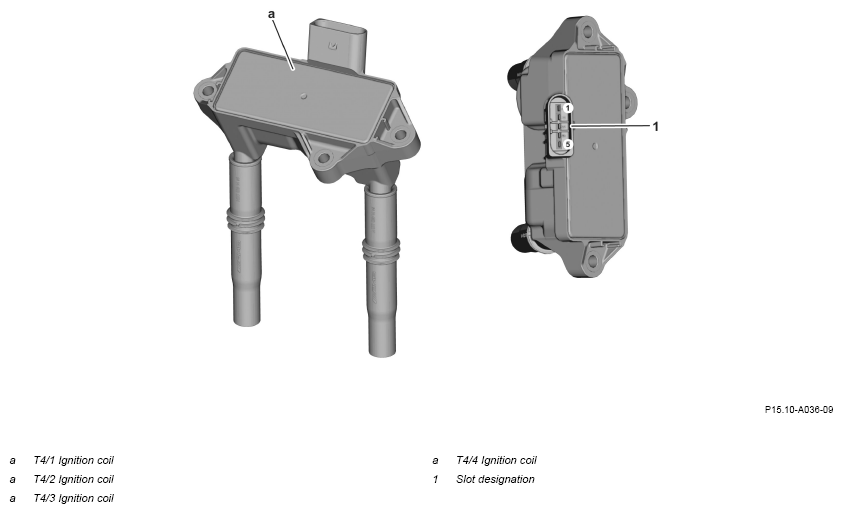

Image valid for model 223 with engine M176

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Image valid for model 223 with engine M177

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

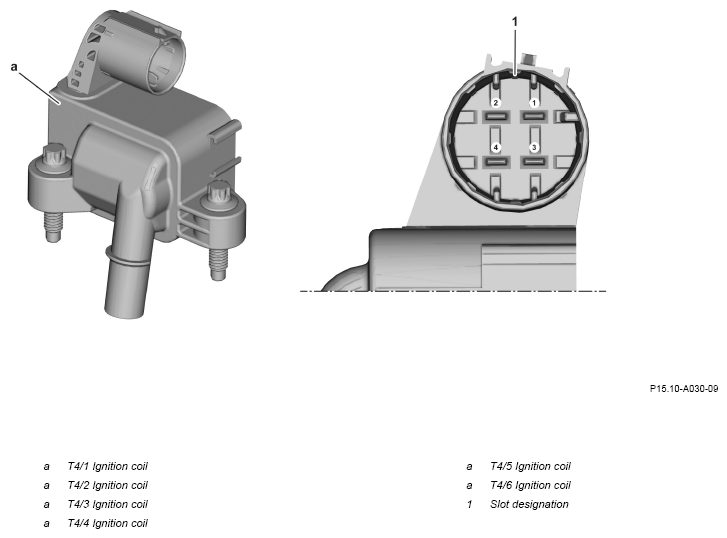

Image valid for model 223 with engine M256

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

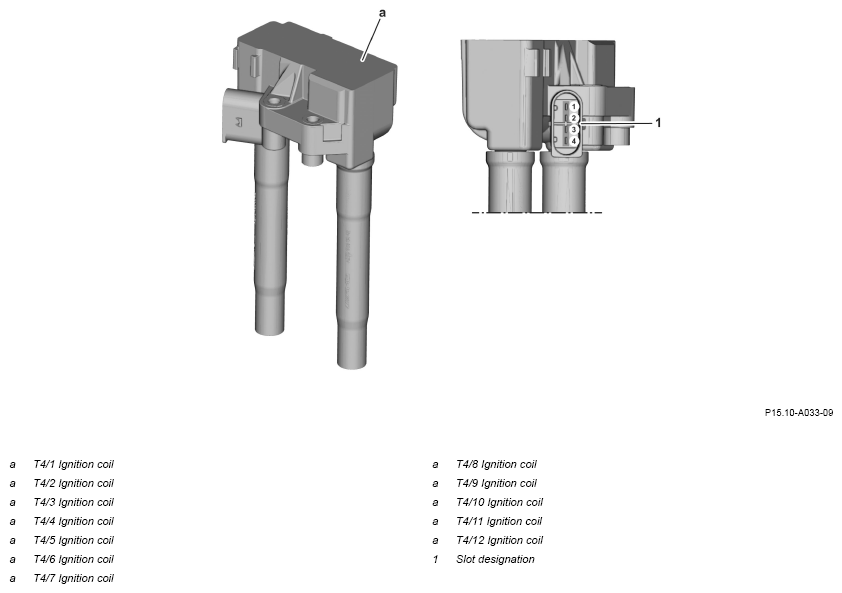

Image valid for model 223 with engine M279

The numbers on the pins indicate the pin numbering of the slots.

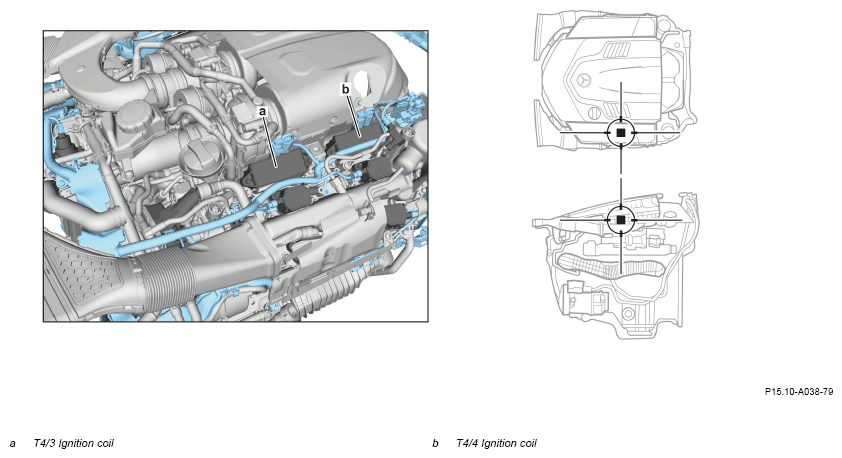

Fig 1: Right Side Ignition Coils Components Location - Model 223 With Engine 176

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M176

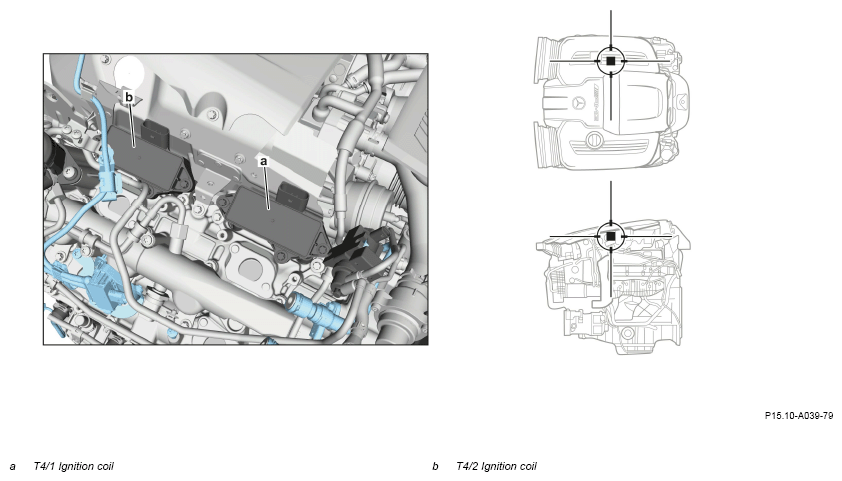

Fig 2: Left Side Ignition Coils Components Location - Model 223 With Engine 176

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M176

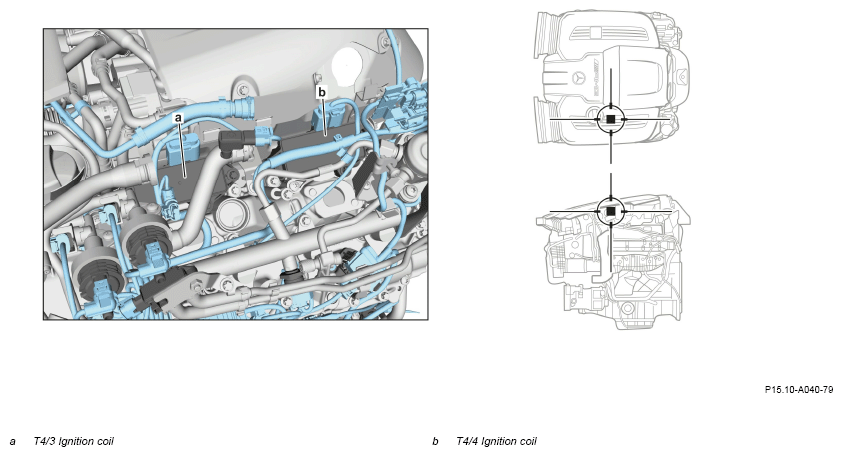

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M177

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M177

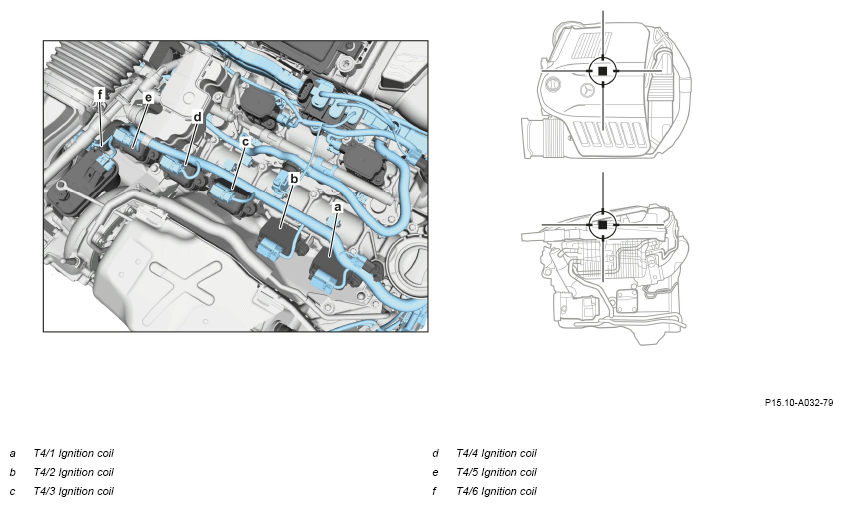

Fig 3: Ignition Coils Components Location - Model 223 With Engine 256

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M256

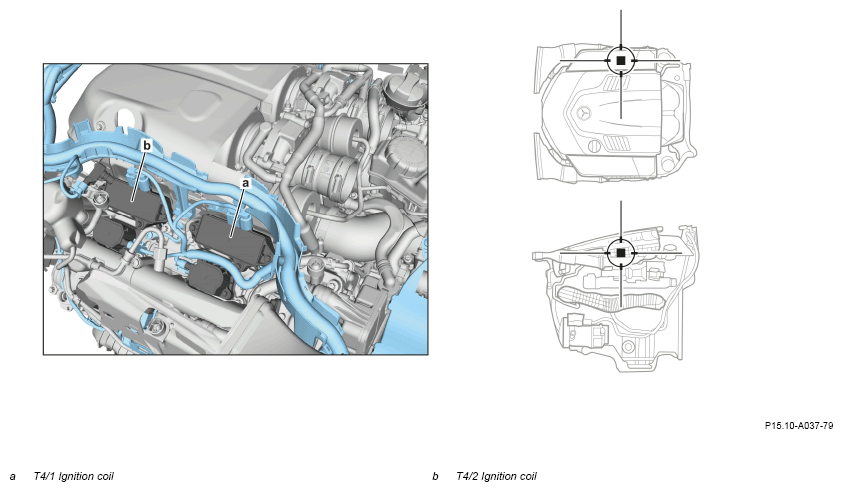

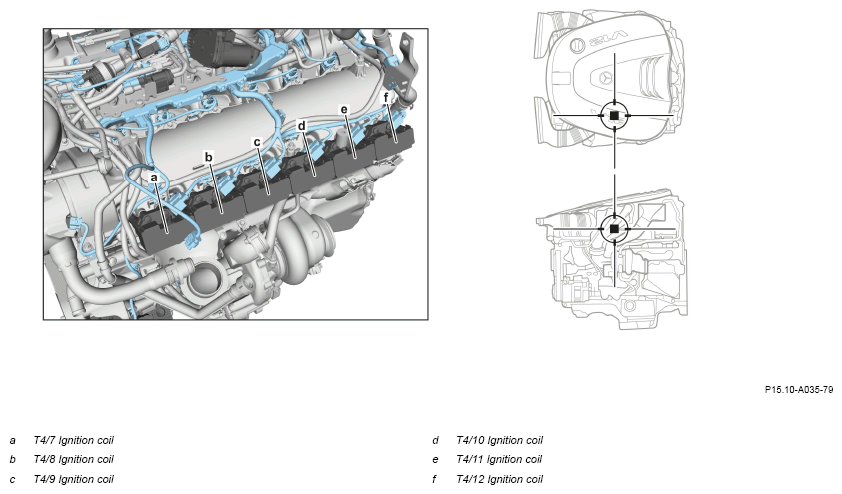

Fig 4: Right Side Ignition Coils Components Location - Model 223 With Engine 279

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M279

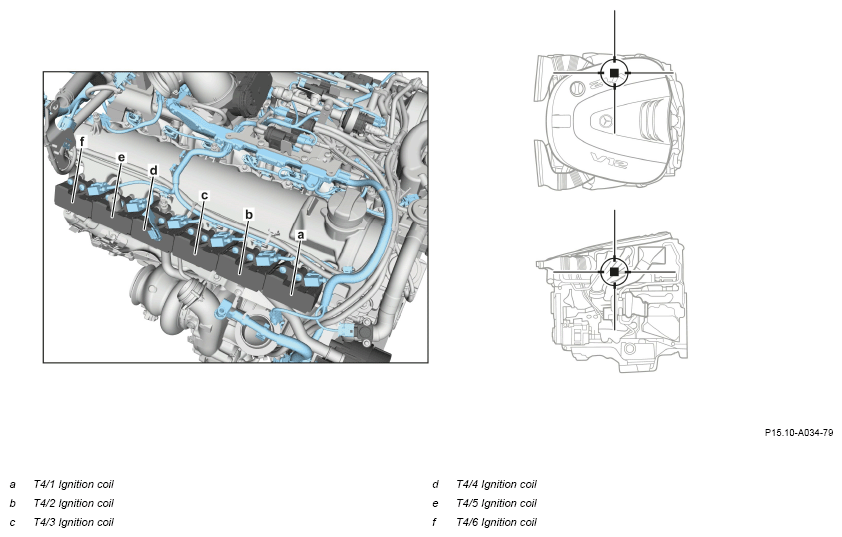

Fig 5: Left Side Ignition Coils Components Location - Model 223 With Engine 279

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with engine M279
