Remove/Install Rear Door Triangular Window - AR67.30-P-2570SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB | |
| Remove/install | |||

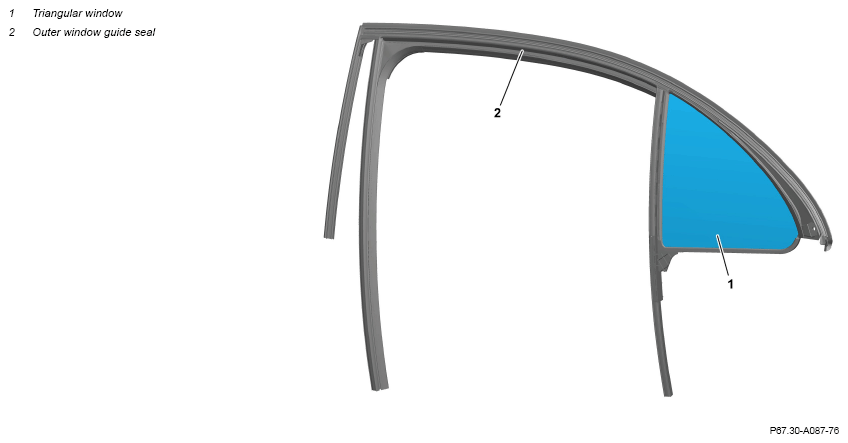

| 1 | Remove outer window guide seal (2) together with triangular window (1). | AR72.12-P-0004SG | |
| 2 | Remove triangular window (1) from outer window guide seal (2). | ||
| 3 | Install in the reverse order. |
